03550 000A

NH fuse 20 A
500 V, gG
size 1
More

03552 000

NH fuse 35 A
500 V, gG
size 1
More

03553 000A

NH fuse 50 A
500 V, gG
size 1
More

03555 000A

NH fuse 80 A
500 V, gG
size 1
More

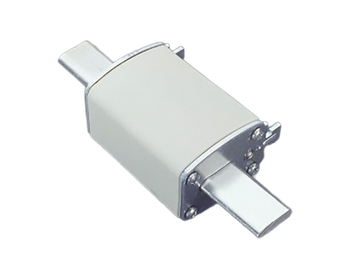

03556 000A

NH fuse 100 A
500 V, gG
size 1
More

03557 000A

NH fuse 125 A
500 V, gG
size 1
More

03558 000A

NH fuse 160 A
500 V, gG
size 1
More

03559 000A

NH fuse 200 A
500 V, gG
size 1
More

03560 000A

NH fuse 224 A
500 V, gG
size 1
More

03561 000A

NH fuse 250 A
500 V, gG
size 1
More
