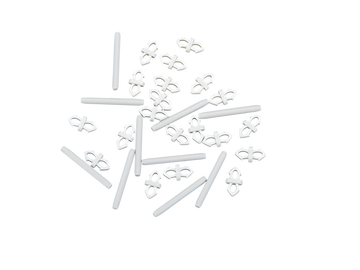

31564 000

connection kit 10x38, 2-pole
for 10 2-pole combinations 10x38
More

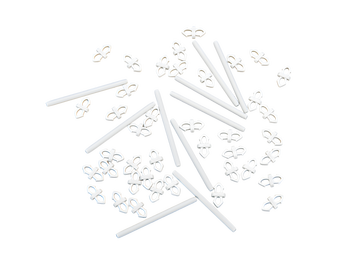

31565 000

connection kit 10x38, 3-pole
for 10 3-pole combinations 10x38
More

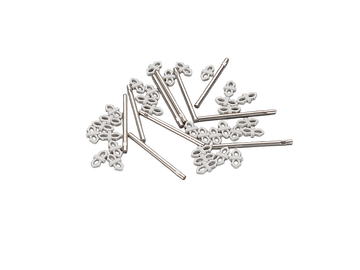

31269 000

connection kit 14x51, 2-pole
for 10 2-pole combinations 14x51
More

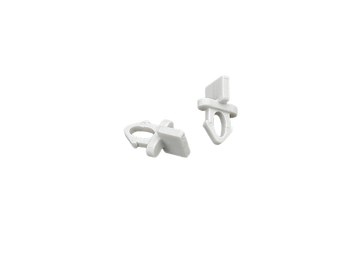

31563 000

spacer 4,5 mm
set for 50 fuse holders 31971 and 31973, for arrangment with 22.5 mm pitch
More
