01242 000A

busbar cover
for 12 x 5 busbar, 1 m long
touch protection cover
More

01244 000

busbar cover
for 12 - 30 x 5 busbar, 1 m long
touch protection cover
More

01245 000

busbar cover
for 12 - 30 x 10 busbar, 1 m long
touch protection cover
More

01252 000

busbar cover
for double-T and triple-T section, 1m long
touch protection cover
More

01025 000

busbar section cover
700 x 195
More

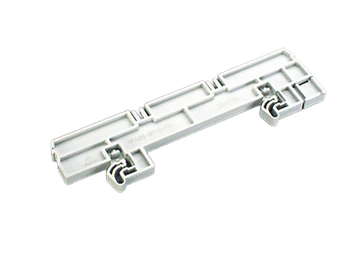

01026 000

mount for busbar section cover
depth 32 mm, for 01025
9 x 196 x 32
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01320 000

Mount for cover section
depth 107 mm, for 01025, 01236, 01237, 01238
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01515 000

base plate UL
240 x 700
More

01518 000

base plate UL
240 x 1100
More

01573 000

end cover
for busbar supports 01484, 01495, 01500, 01508 and 01603
More

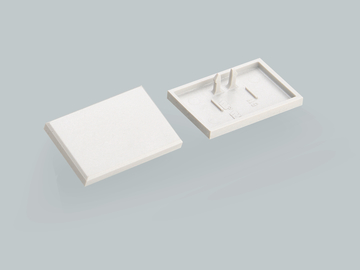

01325 000

end cover
for busbar support 01356 and 01601
More

01363 000

end cover
for busbar support 01602
More

01131 000

end cover
for busbar supports 01357 and 01485 (1x 01131 = 1 left + 1 right cover)
More

01234 000

end cover
for busbar supports 01231 and 01232
More

01373 000

end cover
for busbar supports 01116 and 01132
More

01425 000

end cover
for busbar support 01422
More

01360 000

Set of phase separators for UL installation, 3-pole
for longitudinal connecting terminals 01990, 01823, 01827
105 mm
More

01361 000

Set of phase separators for UL installation, 3-pole
for longitudinal connecting terminals 01141, 01145, 01274
145 mm
More

01362 000

Set of phase separators for UL installation, 3-pole
for longitudinal connecting terminals 01886, 01829, 01275
200 mm
More

01236 000

compartment section
48 mm deep, 2.40 m long
More

01237 000

compartment section
76 mm deep, 2.40 m long
More

01238 000

compartment section
106 mm deep, 2.40 m long
2400 x 106
More

79859 000

reserve section cover
variable, 36 to 64 x 195, with 2 pieces
More

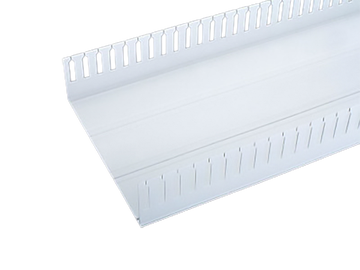

01009 000

bottom trough
230 x 1100
More

01010 000

bottom trough
230 x 700
More

01011 000

bottom trough
290 x 1100
More

01017 000

section mount
for compartment section and trough edge section
More

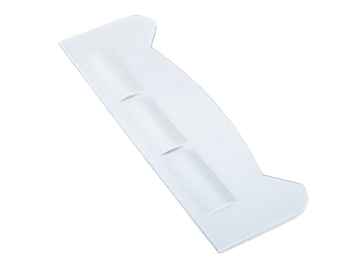

01019 000

end cover
3-pole
230 mm
More

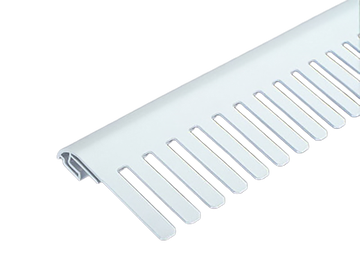

01030 000

compartment section
slotted
17 x 86 x 2400
More

01037 000

trough edge section
slim
17 x 36 x 1100
More

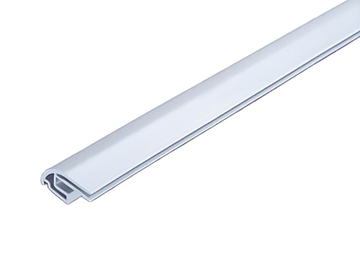

01038 000

trough edge section
slim
17 x 36 x 700
More

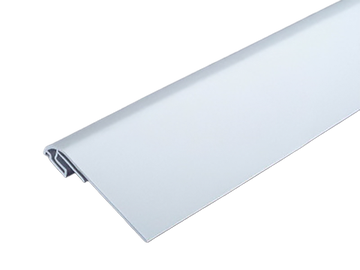

01039 000

compartment section
closed
17 x 86 x 1100
More

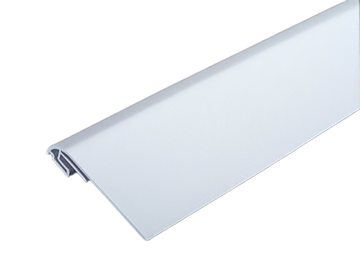

01040 000

compartment section
closed
17 x 86 x 700
More

01041 000

compartment section
slotted
17 x 86 x 1100
More

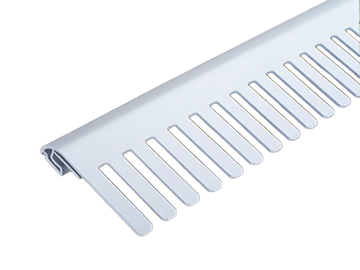

01042 000

compartment section
slotted
17 x 86 x 700
More

01043 000

trough edge section
wide
77 x 36 x 1100
More

01045 000

bottom trough
230 x 2400
More

01046 000

bottom trough
290 x 2400
More

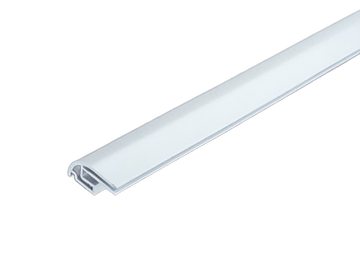

01048 000

trough edge section
slim
17 x 36 x 2400
More

01136 000

set of holders for cover sections
for 3-pole busbar systems
set consisting of left and right holder, for covers 01554, 01555 and 01417
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01137 000

set of holders for cover sections
for 4-pole busbar systems
set consisting of left and right holder, for covers 01599, 01555 and 01417
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01554 000

compartment section, for 3-pole systems
front mounted, 1.10 m long, for holder 01136
3 x 190 x 1100
More

01599 000

front cover section, for 4-pole systems
front mounted, 1.10 m long, for holder 01137
3 x 250 x 1100
More

01417 000

cover section
top / bottom, slotted, 1.10 m long, for holders 01136 or 01137
3 x 118 x 1100
More

01555 000

cover section
top / bottom, 1.10 m long, for holders 01136 or 01137
3 x 109 x 1100
More

79738 000

reserve section cover
54 x 195, pitch 3 x 18 mm
More

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
