03523 000A

NH fuse 6 A
500 V, gG
size 000
More

03524 000A

NH fuse 10 A
500 V, gG
size 000
More

03525 000A

NH fuse 16 A
500 V, gG
size 000
More

03526 000A

NH fuse 20 A
500 V, gG
size 000
More

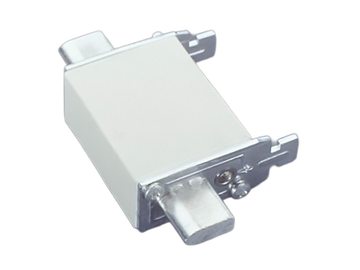

03527 000A

NH fuse 25 A
500 V, gG
size 000
More

03535 000A

NH fuse 32 A
500 V, gG
size 000
More

03528 000A

NH fuse 35 A
500 V, gG
size 000
More

03536 000A

NH fuse 40 A
500 V, gG
size 000
More

03529 000A

NH fuse 50 A
500 V, gG
size 000
More

03530 000A

NH fuse 63 A
500 V, gG
size 000
More

03531 000A

NH fuse 80 A
500 V, gG
size 000
More

03532 000A

NH fuse 100 A
500 V, gG
size 000
More

03243 000

NH fuse 125 A
400 V, gG
size 000
More
