03566 000A

NH fuse 100 A
500 V, gG
size 2
More

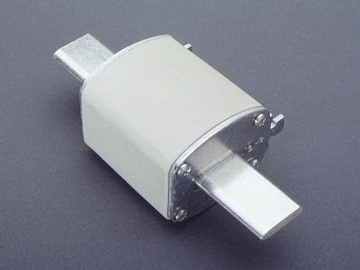

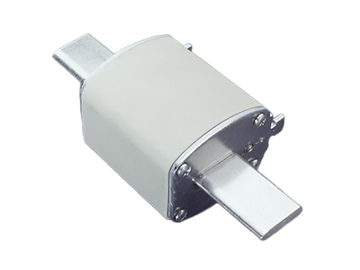

03568 000A

NH fuse 160 A
500 V, gG
size 2
More

03569 000A

NH fuse 200 A
500 V, gG
size 2
More

03570 000A

NH fuse 224 A
500 V, gG
size 2
More

03571 000A

NH fuse 250 A
500 V, gG
size 2
More

03572 000A

NH fuse 300 A
500 V, gG
size 2
More

03573 000A

NH fuse 315 A
500 V, gG
size 2
More

03574 000A

NH fuse 355 A
500 V, gG
size 2
More

03575 000A

NH fuse 400 A
500 V, gG
size 2
More
