31543 000

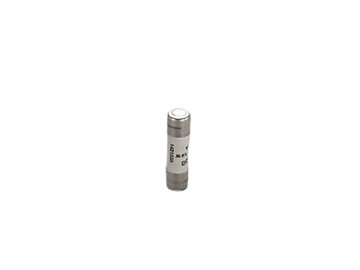

cylindr. fuse link 8 A
1000 V DC, gPV
10 x 38
More

31544 000

cylindr. fuse link 10 A
1000 V DC, gPV
10 x 38
More

31545 000

cylindr. fuse link 12 A
1000 V DC, gPV
10 x 38
More

31546 000

cylindr. fuse link 16 A
1000 V DC, gPV
10 x 38
More

31547 000

cylindr. fuse link 20 A
1000 V DC, gPV
10 x 38
More
