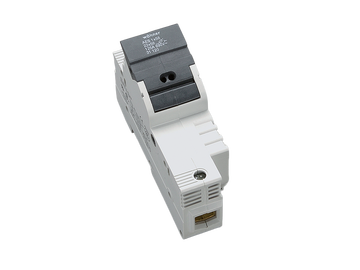

31120 000

AMBUS^®Panel
holder for cylindrical fuses
22 x 58 / 1P
100 A / 690 V
More

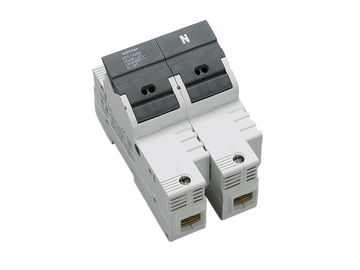

31121 000

AMBUS^®Panel
holder for cylindrical fuses
22 x 58 / 1P + N
100 A / 690 V
More

31122 000

AMBUS^®Panel
holder for cylindrical fuses
22 x 58 / 2P
100 A / 690 V
More

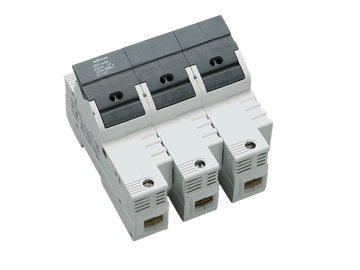

31123 000

AMBUS^®Panel
holder for cylindrical fuses
22 x 58 / 3P
100 A / 690 V
More

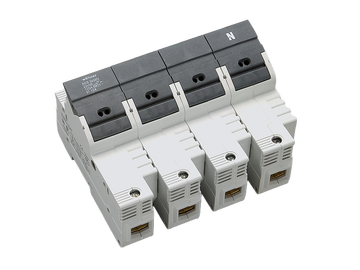

31124 000

AMBUS^®Panel
holder for cylindrical fuses
22 x 58 / 3P + N
100 A / 690 V
More

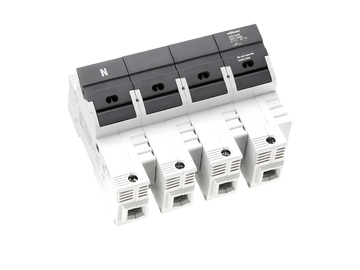

31171 000

AMBUS^®Panel
holder for cylindrical fuses
22 x 58 / 3P + N
100 A / 690 V
More

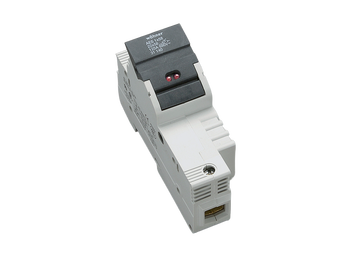

31140 000

AMBUS^®Panel
holder for cylindrical fuses, with LED
22 x 58 / 1P
100 A / 110 - 690 V
indication (LED) of a tripped fuse link
More

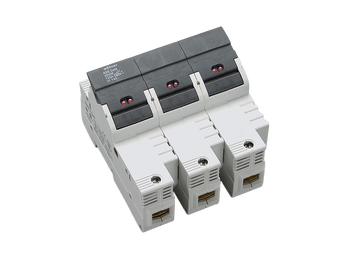

31143 000

AMBUS^®Panel
holder for cylindrical fuses, with LED
22 x 58 / 3P
100 A / 110 - 690 V
indication (LED) of a tripped fuse link
More

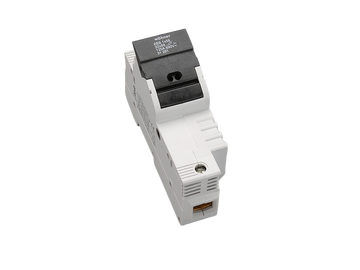

31281 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
22 x 58 / 1P
100 A / 690 V
More

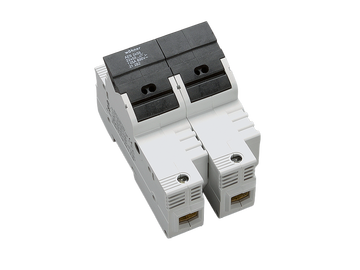

31282 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
22 x 58 / 2P
100 A / 690 V
More

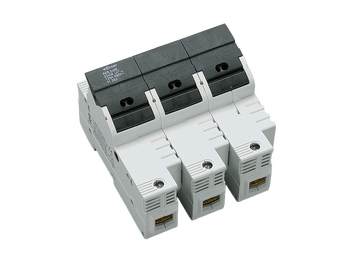

31283 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
22 x 58 / 3P
100 A / 690 V
More

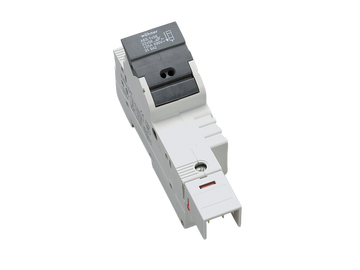

31942 000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
22 x 58 / 1P
100 A / 690 V
for fuse links with striker pin
More

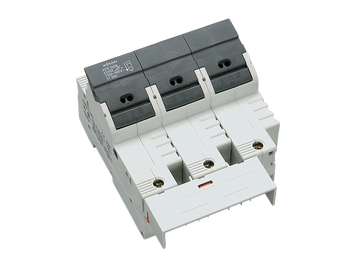

31943 000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
22 x 58 / 3P
100 A / 690 V
for fuse links with striker pin
More

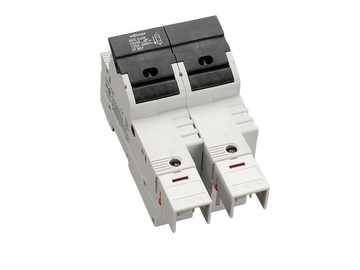

31957 000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
22 x 58 / 2P
100 A / 690 V
for fuse links with striker pin
More
