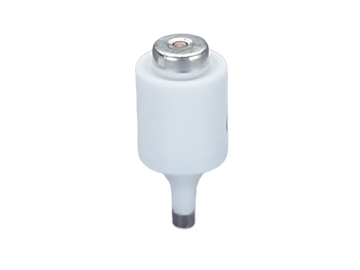

01670 000

D-fuse link 2 A
500 V, gG
E 27
More

01671 000

D-fuse link 4 A
500 V, gG
E 27
More

01672 000

D-fuse link 6 A
500 V, gG
E 27
More

01673 000

D-fuse link 10 A
500 V, gG
E 27
More

01674 000

D-fuse link 16 A
500 V, gG
E 27
More

01675 000

D-fuse link 20 A
500 V, gG
E 27
More

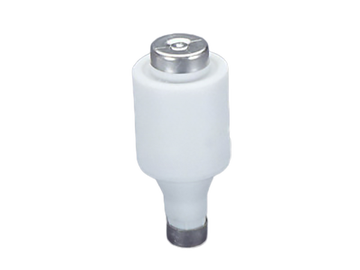

01676 000

D-fuse link 25 A
500 V, gG
E 27
More

01677 000

D-fuse link 35 A
500 V, gG
E 33
More

01678 000

D-fuse link 50 A
500 V, gG
E 33
More

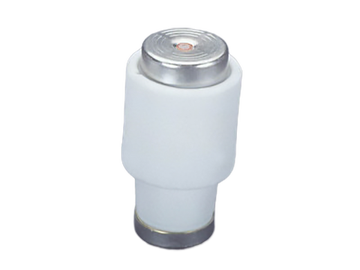

01679 000

D-fuse link 63 A
500 V, gG
E 33
More
