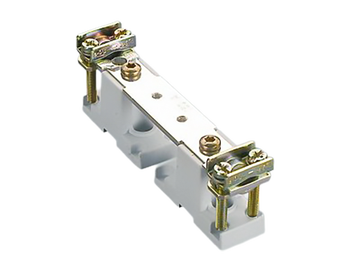

03173 000

feed-through terminal 160 A
125 mm long, both sides clamp
More

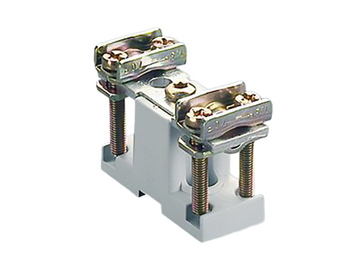

03193 000

feed-through terminal 160 A
60 mm long, both sides clamp
More

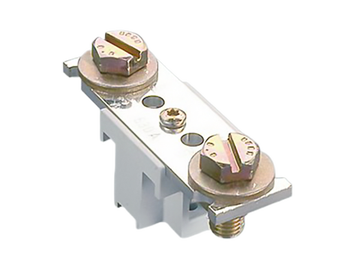

03195 000

feed-through terminal 250 a
100 mm long, both sides screw M10
More

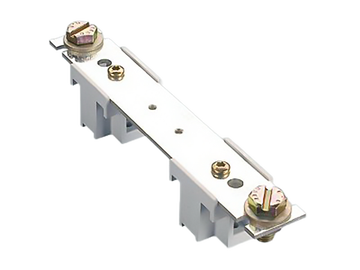

03196 000

feed-through terminal 250 A
200 mm long, both sides screw M10
More

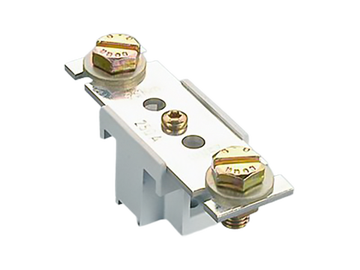

03197 000

feed-through terminal 630 A
100 mm long, both sides screw M12
More

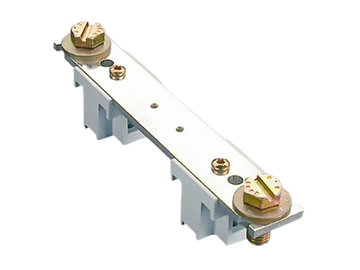

03198 000

feed-through terminal 630 A
200 mm long, both sides screw M12
More

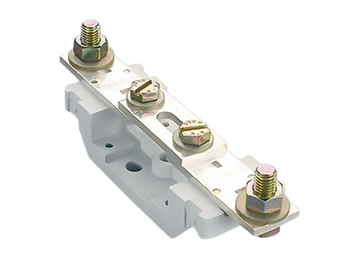

03213 000

neutral conductor 630 A, disconnectable
screw M12 at both sides
200 mm long
More

03519 000

neutral conductor 160 A
screw M8 at both sides
More

03620 000

neutral conductor 160 A
clamp, both sides
More

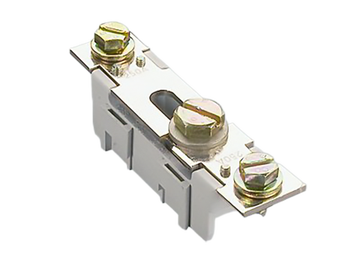

03657 000

neutral conductor 250 A, disconnectable
screw M8 at both sides
120 mm long
More

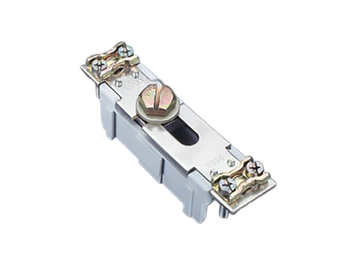

03668 000

neutral conductor 160 A, disconnectable
clamp on both sides
120 mm long
More

03757 000

neutral conductor 400 A, disconnectable
screw M10 at both sides
200 mm long
More

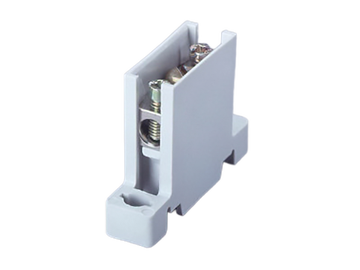

05188 000

neutral conductor 63 A, disconnectable
socket terminal screw-on / snap-on
More
