31333 000

fuse link 1 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31338 000

fuse link 2 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31342 000

fuse link 3 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31345 000

fuse link 4 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31347 000

fuse link 5 A
-Mersen-
600 V AC, time delay
Class J, 21x57
fino esaurimento scorte
More

31349 000

fuse link 6 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31351 000

fuse link 8 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31353 000

fuse link 10 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31354 000

fuse link 12 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31355 000

fuse link 15 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31357 000

fuse link 20 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31358 000

fuse link 25 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31359 000

fuse link 30 A
-Mersen-
600 V AC, time delay
Class J, 21x57
More

31360 000

fuse link 35 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31361 000

fuse link 40 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31362 000

fuse link 45 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

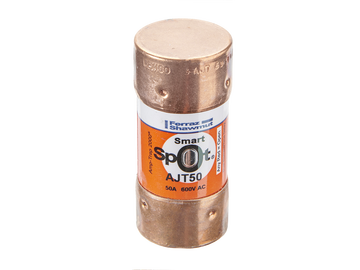

31363 000

fuse link 50 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More

31364 000

fuse link 60 A
-Mersen-
600 V AC, time delay
Class J, 27x60
More
