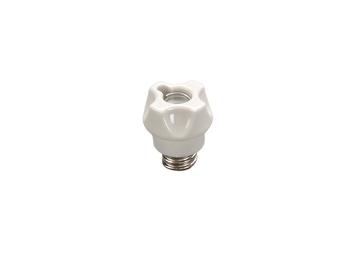

01103 000

D01 screw cap, porcelain
400 V
E 14
More

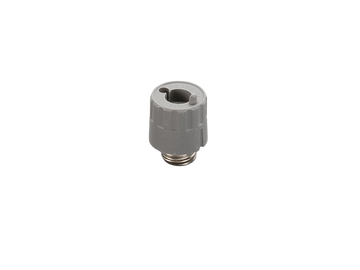

31005 000

D01 screw cap, plastic
400 V
E 14
More

01104 000

D02 screw cap, porcelain
400 V
E 18
More

31006 000

D02 screw cap, plastic
400 V
E 18
More

31104 000

D02 screw cap, plastic, with reducer for D01
400 V, with inspection hole
E 18
More

31908 000

locking cap D01 version -utility-
400 V
E 14
fino esaurimento scorte
More

31910 000

locking cap D02 version -industry-
400 V
E 18
More

31904 000

locking cap D02 version -utility-
400 V
E 18
More
