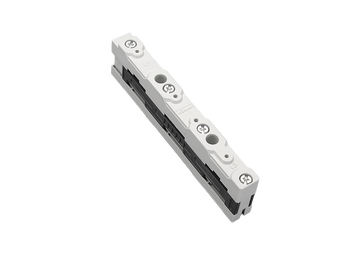

01495 000

universal busbar support
3-pole with internal screw holes
for busbars: 12, 15, 20, 25, 30 x 5, 10
More

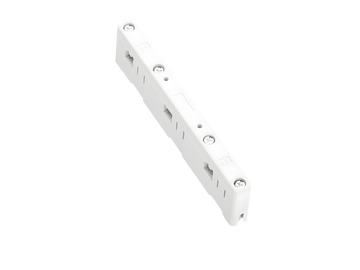

01603 000

universal busbar support
3-pole with internal screw holes
for busbars: 12, 20, 30 x 5, 10
More

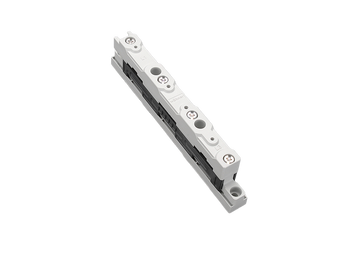

01500 000

universal busbar support
3-pole with additional external screw holes
for busbars: 12, 15, 20, 25, 30 x 5, 10
More

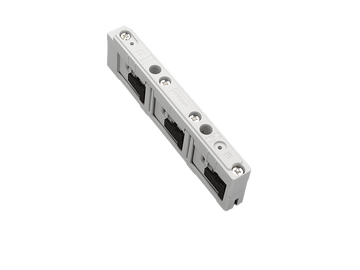

01508 000

universal busbar support UL
3-pole, with internal screw holes
for busbars: 12, 20, 30 x 5, 10
More

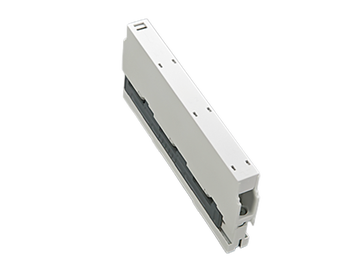

01484 000

connection busbar support
3-pole, with integrated terminals 1.5 - 16 mm²
for busbars: 12, 15, 20, 25, 30 x 5, 10
More

01231 000

busbar support
3-pole, with internal screw holes
for busbars: double-T section
More

01232 000

busbar support
3-pole, with internal screw holes
for busbars: triple-T section
More

01422 000

busbar support
3-pole, with internal screw holes
for busbars: TCC section
More

01138 000

busbar support 3 phases + N + E
for boxes AKi (Spelsberg) and VMS (ABB / GE)
for busbars: 3x (12, 20, 30 x 10) and 2x (12, 20, 25 x 5, 10)
More
