for UL feeder circuits >250V

busbar support

The picture may show a similar product.

Description

Part No.: 01422 000

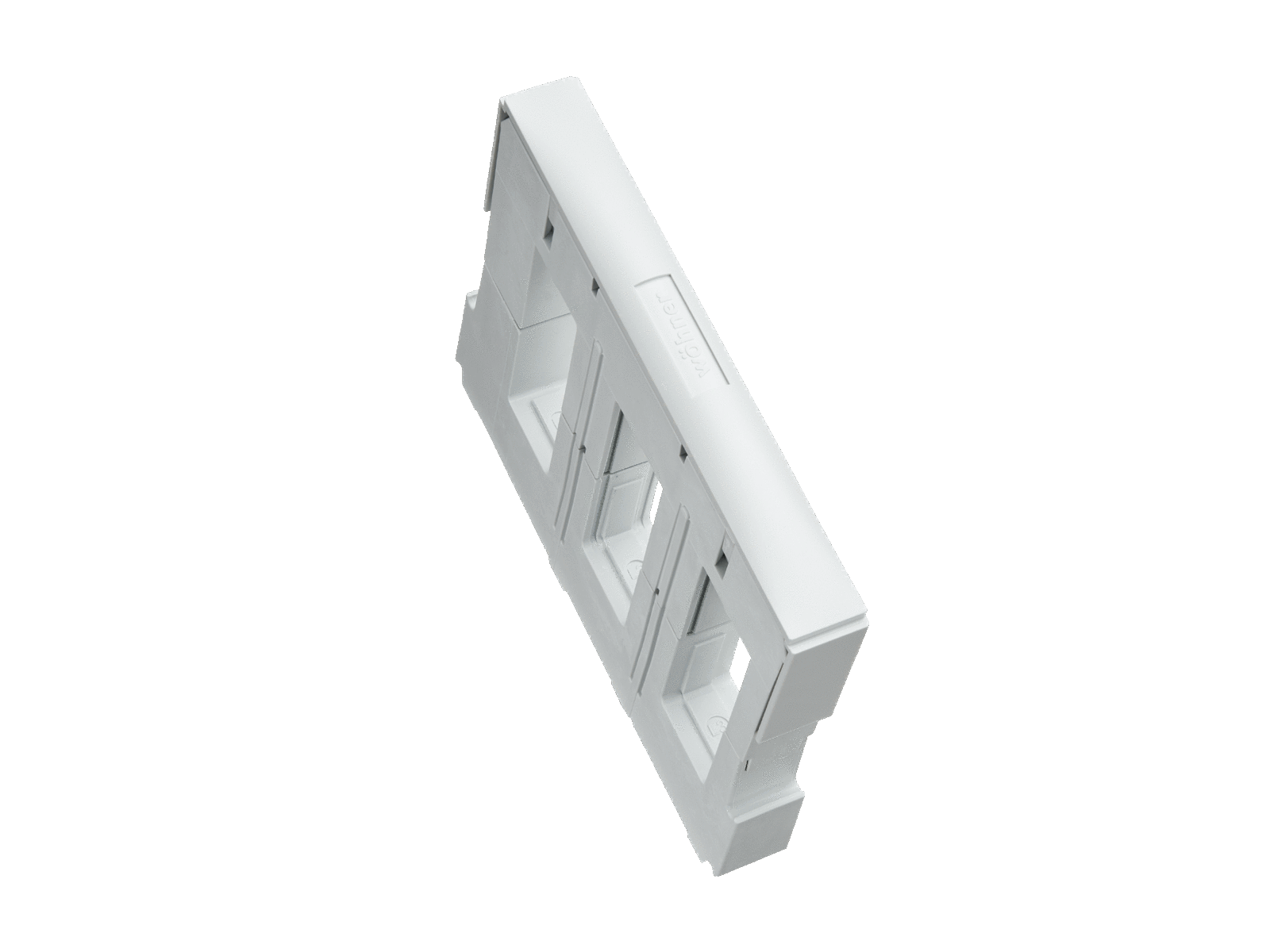

busbar support

3-pole, with internal screw holes

for busbars TCC section

System

60Classic

Advantages of the product

Suitable as outer and centre supports
with internal screw holes.

Product group 06
Subgroup 09
pack size 2
EAN 4021267014223
ECLASS 14.0 27400607
ETIM 5.0 EC001166
ETIM 8.0 EC001166
ETIM 10.0 EC001166

Approvals

Standards

IEC 61439-1:2020

EAC Type: SB

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 800 V
rated frequency (IEC): 50 / 60 Hz
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 8 kV
rated peak withstand current  Ipk max.: 90 kA
rated short-time withstand current Icw (1.0 s) max.: 43 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) DC: 1500 V
min. permitted operation temperature -40°C
short-circuit capacity IEC / EN :
Ipk max. = 90 kA (2 busbar supports in 500 mm distance)
further data see short-circuit diagram
Mechanical data
W x H x D: 26 x 200 x 173
weight: 69.7 kg/100
poles: 3-pole
for busbars: TCC section
Material properties
halogen-free: Yes

Application notes

The insulation performance of the article depends on the installation conditions.

Torque for the screws of the busbar support Md = 4Nm
