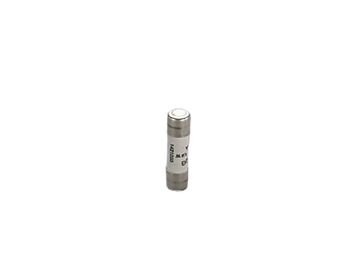

31205 000

cylindr. fuse link 1 A
690 V, gR
10 x 38
More

31206 000

cylindr. fuse link 2 A
690 V, gR
10 x 38
More

31207 000

cylindr. fuse link 4 A
690 V, gR
10 x 38
More

31208 000

cylindr. fuse link 6 A
690 V, gR
10 x 38
More

31209 000

cylindr. fuse link 10 A
690 V, gR
10 x 38
More

31210 000

cylindr. fuse link 12 A
690 V, gR
10 x 38
More

31211 000

cylindr. fuse link 16 A
690 V, gR
10 x 38
More

31212 000

cylindr. fuse link 20 A
690 V, gR
10 x 38
More

31213 000

cylindr. fuse link 25 A
690 V, gR
10 x 38
More

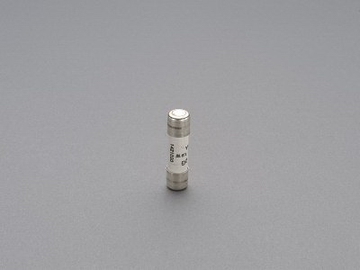

31214 000

cylindr. fuse link 30 A
690 V, gR
10 x 38
More
