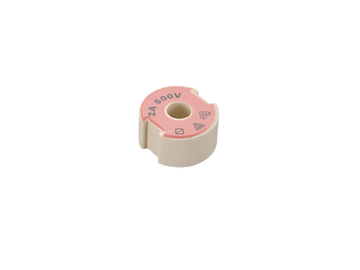

01741 000

screw-in gauge ring 2 A
pink
E 27 / E 33
More

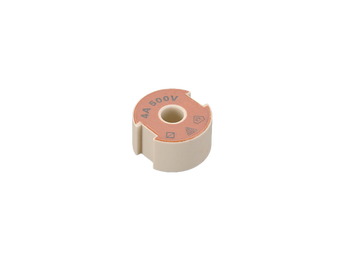

01701 000

screw-in gauge ring 4 A
brown
E 27 / E 33
More

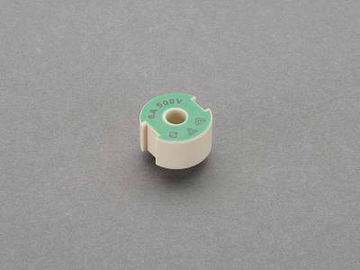

01702 000

screw-in gauge ring 6 A
green
E 27 / E 33
More

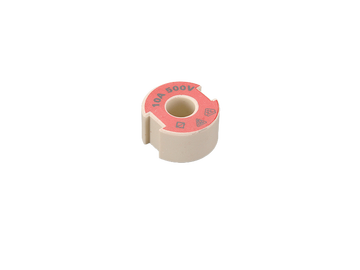

01703 000

screw-in gauge ring 10 A
red
E 27 / E 33
More

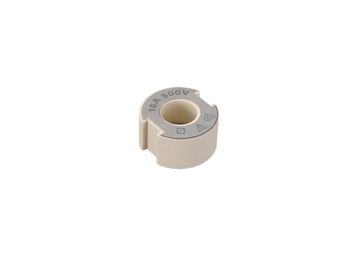

01704 000

screw-in gauge ring 16 A
grey
E 27 / E 33
More

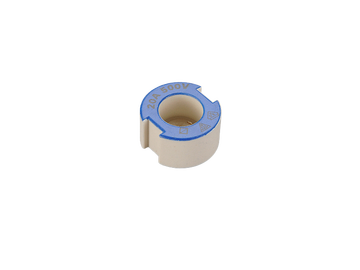

01705 000

screw-in gauge ring 20 A
blue
E 27 / E 33
More

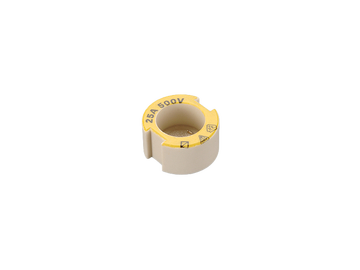

01706 000

screw-in gauge ring 25 A
yellow
E 27 / E 33
More

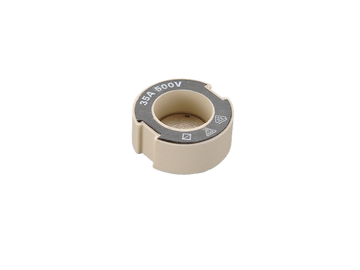

01707 000

screw-in gauge ring 35 A
black
E 33
More

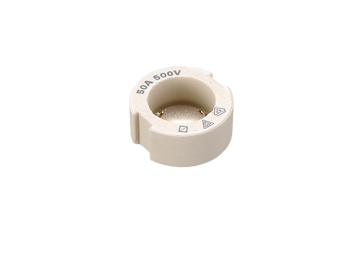

01708 000

screw-in gauge ring 50 A
white
E 33
More

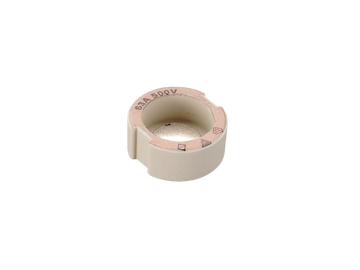

01709 000

screw-in gauge ring 63 A
copper
E 33
More

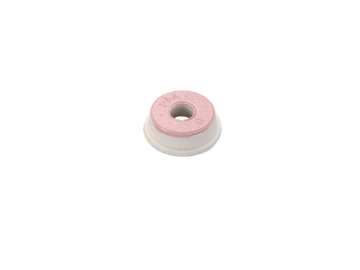

01541 000

gauge ring 2 A
pink
E 27
More

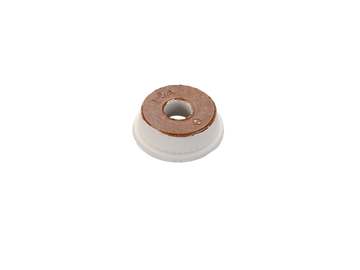

01542 000

gauge ring 4 A
brown
E 27
More

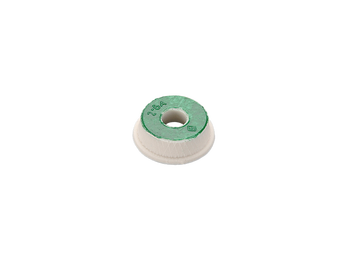

01543 000

gauge ring 6 A
green
E 27
More

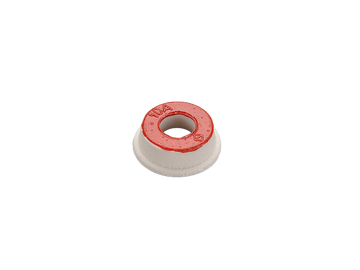

01544 000

gauge ring 10 A
red
E 27
More

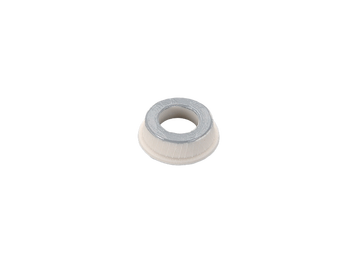

01545 000

gauge ring 16 A
grey
E 27
More

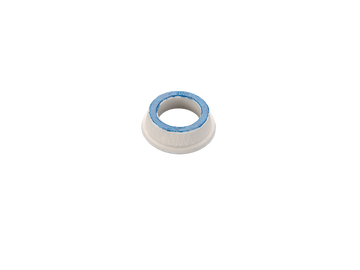

01546 000

gauge ring 20 A
blue
E 27
More

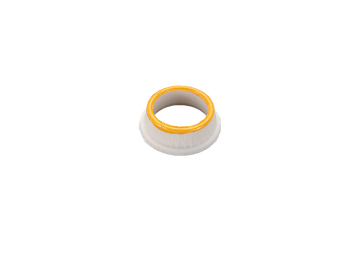

01547 000

gauge ring 25 A
yellow
E 27
More

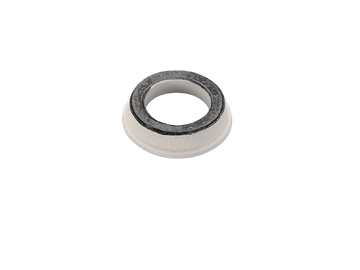

01548 000

gauge ring 35 A
black
E 33
More

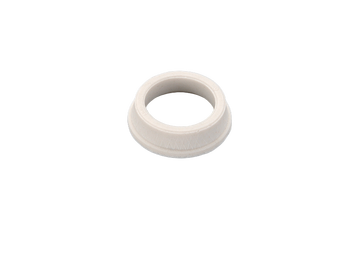

01549 000

gauge ring 50 A
white
E 33
More

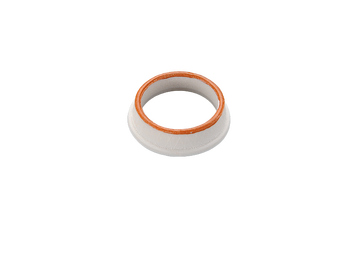

01550 000

gauge ring 63 A
copper
E 33
More
