31115 000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 1P
50 A / 690 V
More

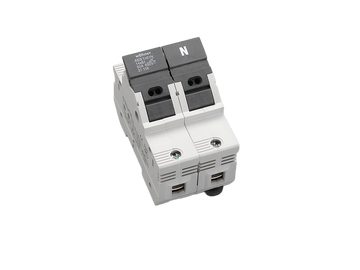

31116 000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 1P + N
50 A / 690 V
More

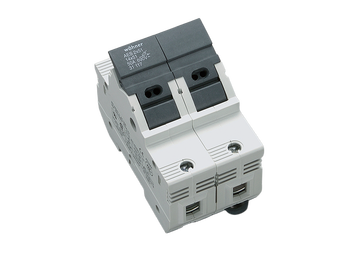

31117 000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 2P
50 A / 690 V
More

31118 000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 3P
50 A / 690 V
More

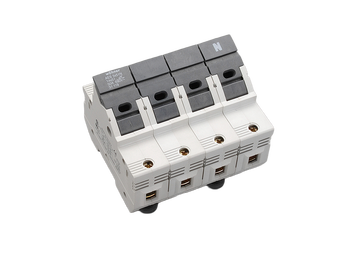

31119 000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 3P + N
50 A / 690 V
More

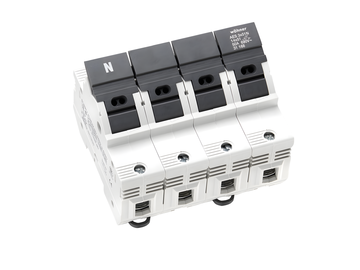

31168 000

AMBUS^®Panel
holder for cylindrical fuses
14 x 51 / 3P + N
50 A / 690 V
More

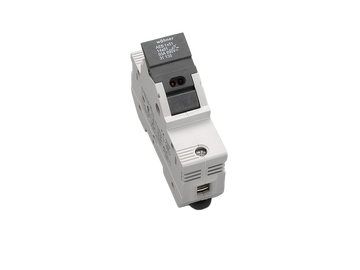

31135 000

AMBUS^®Panel
holder for cylindrical fuses, with LED
14 x 51 / 1P
50 A / 110 - 690 V
indication (LED) of a tripped fuse link
More

31138 000

AMBUS^®Panel
holder for cylindrical fuses, with LED
14 x 51 / 3P
50 A / 110 - 690 V
indication (LED) of a tripped fuse link
More

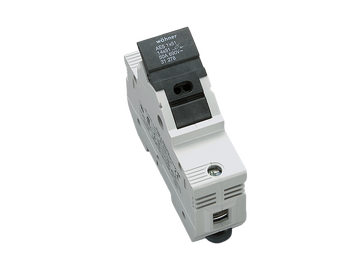

31278 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 1P
50 A / 690 V
More

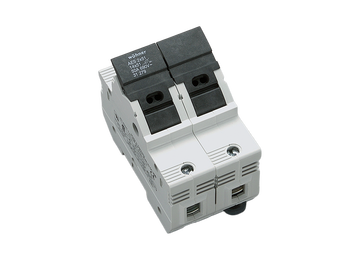

31279 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 2P
50 A / 690 V
More

31280 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 3P
50 A / 690 V
More

31940 000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
14 x 51 / 1P
50 A / 690 V
for fuse links with striker pin
More

31941 000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
14 x 51 / 3P
50 A / 690 V
for fuse links with striker pin
More

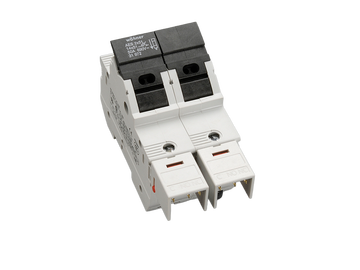

31972 000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
14 x 51 / 2P
50 A / 690 V
for fuse links with striker pin
More
