31115000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 1P
50 A / 690 V
More

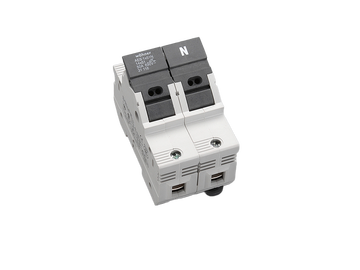

31116000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 1P + N
50 A / 690 V
More

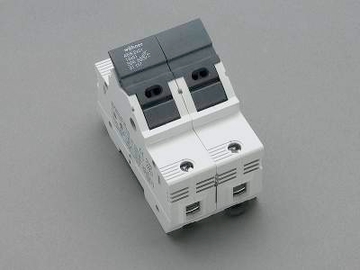

31117000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 2P
50 A / 690 V
More

31118000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 3P
50 A / 690 V
More

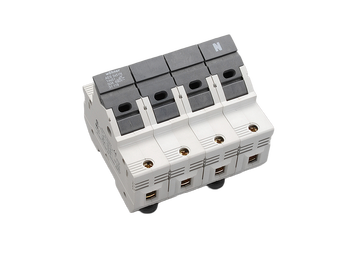

31119000

AMBUS^®Panel
holder for cylindrical fuses
14x51 / 3P + N
50 A / 690 V
More

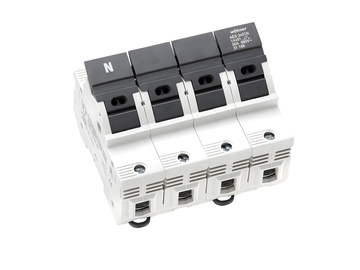

31168000

AMBUS^®Panel
holder for cylindrical fuses
14 x 51 / 3P + N
50 A / 690 V
More

31135000

AMBUS^®Panel
holder for cylindrical fuses, with LED
14 x 51 / 1P
50 A / 110 - 690 V
indication of a released fuse link
More

31138000

AMBUS^®Panel
holder for cylindrical fuses, with LED
14 x 51 / 3P
50 A / 110 - 690 V
indication of a released fuse link
More

31278000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 1P
50 A / 690 V
More

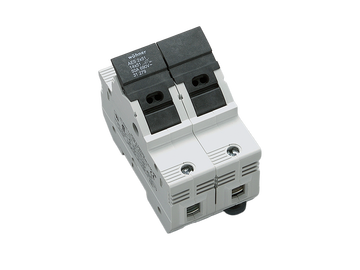

31279000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 2P
50 A / 690 V
More

31280000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 3P
50 A / 690 V
More

31940000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
14 x 51 / 1P
50 A / 690 V
for fuse links with striker pin
More

31941000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
14 x 51 / 3P
50 A / 690 V
for fuse links with striker pin
More

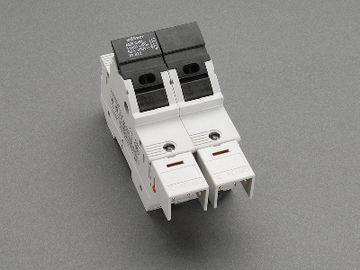

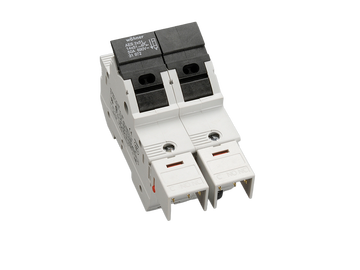

31972000

AMBUS^®Panel
holder for cylindrical fuses, with pilot switch
14 x 51 / 2P
50 A / 690 V
for fuse links with striker pin
More
