32004000

EQUES^®60Classic
busbar adapter 630 A
connection screws M12 (top / bottom)
184 x 320
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

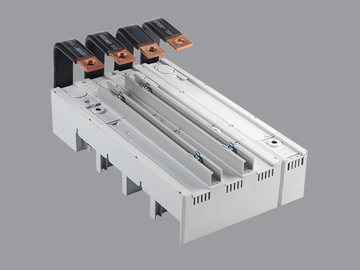

32112000AC

EQUES^®60Classic
busbar adapter 400 A, 4-pole
with laminated copper (bottom)
140 x 300
phase distance 44 - 48 mm
connection to the system bottom
for: Schneider Electric NSX 400
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
coming soon
More

32010000AC

EQUES^®60Classic
busbar adapter 400 A, 3-pole
with laminated copper (top)
140 x 300
phase distance 44 - 48 mm
connection to the system top
for: Schneider Electric NSX 400
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
coming soon
More

32012000AC

EQUES^®60Classic
busbar adapter 400 A, 3-pole
with laminated copper (bottom)
140 x 300
phase distance 44 - 48 mm
connection to the system bottom
for: Schneider Electric NSX 400
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
coming soon
More
