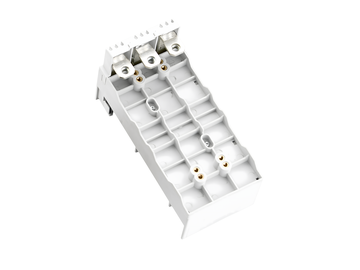

32661000A

EQUES^®30Compact
busbar adapter 144 A, 3-pole
76 x 160
for: Siemens 3VA10, 3VA11
for busbars: 12 x 5, 10
More
