35004000

centre feed unit 2000 A
for cabinet width 800 mm
usable busbar length 603 mm
More

35005000

centre feed unit 2000 A
for cabinet width 600 mm
usable busbar length 403 mm
More

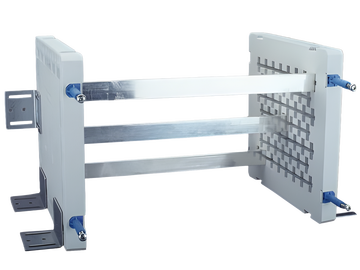

35006000

centre feed unit 1250 A
for cabinet width 800 mm
usable busbar length 603 mm
More

35007000

centre feed unit 1250 A
for cabinet width 600 mm
usable busbar length 403 mm
More

35015000

centre feed unit 3200 A
for cabinet width 600 mm
usable busbar length 403 mm
More

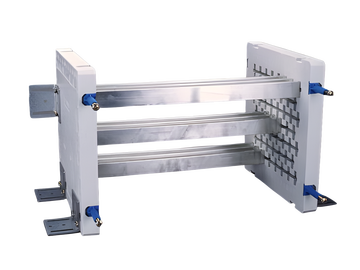

35016000

centre feed unit 3200 A
for cabinet width 800 mm
usable busbar length 603 mm
More
