01423000A

CRITO^®185Power
connection module with cover
für Kabeldirektanschluss, Rahmenklemme Cu 300 mm² / Al 240 mm²
angled
for: Cu max. 300 mm² / Al max. 240 mm²
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

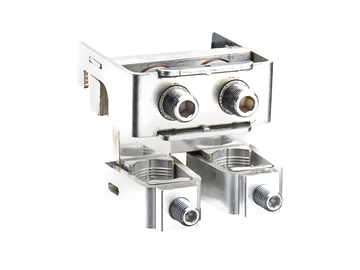

01441000A

CRITO^®185Power
connection module
for direct cable connection, with 2 box terminals 300 mm²
without cover
connection top or bottom
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

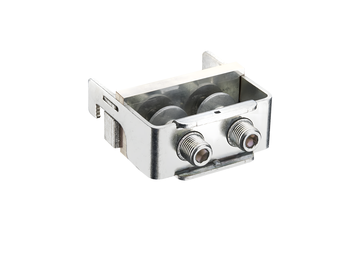

01442000A

CRITO^®185Power
connection module
for lam. Cu max. 2x 80 x 10
without cover
connection top or bottom
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

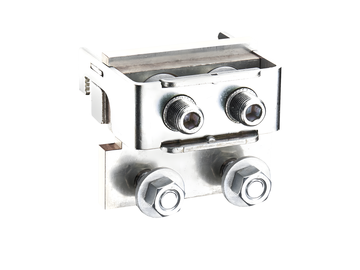

01443000A

CRITO^®185Power
connection module
for 4 cable lugs M12
without cover
connection top or bottom
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
