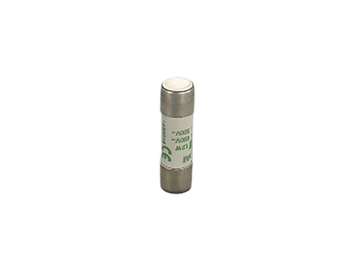

31011000

cylindr. fuse link 2 A
690 V, gG
14 x 51
More

31017000

cylindr. fuse link 6 A
690 V, gG
14 x 51
More

31190000

cylindr. fuse link 10 A
690 V, gG
14 x 51
More

31191000

cylindr. fuse link 16 A
690 V, gG
14 x 51
More

31192000

cylindr. fuse link 20 A
690 V, gG
14 x 51
More

31193000

cylindr. fuse link 25 A
690 V, gG
14 x 51
More

31194000

cylindr. fuse link 32 A
500 V, gG
14 x 51
More

31195000

cylindr. fuse link 40 A
500 V, gG
14 x 51
More

31196000

cylindr. fuse link 50 A
400 V, gG
14 x 51
More
