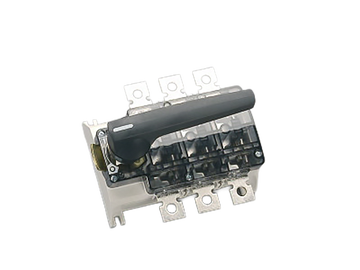

33333 000

CAPUS^®Panel
switch-disconnector 3-pole
screw M10, graphite-grey handle
250 A
More

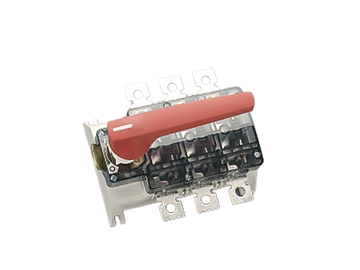

33355 000

CAPUS^®Panel
switch-disconnector 3-pole
screw M10, red handle
250 A
More

23003 000AD

CAPUS^®Panel
switch-disconnector 3-pole
screw M8, graphite-grey handle
250 A
More
