03914 000A

NH fuse 35 A
690 V, gG
size 000
More

03915 000A

NH fuse 40 A
690 V, gG
size 00
More

03916 000A

NH fuse 50 A
690 V, gG
size 00
More

03917 000A

NH fuse 63 A
690 V, gG
size 00
More

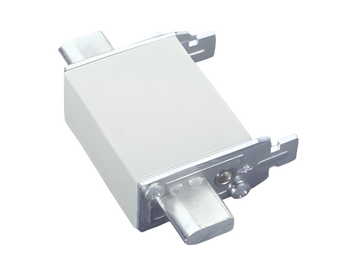

03918 000A

NH fuse 80 A
690 V, gG
size 00
More

03919 000A

NH fuse 100 A
690 V, gG
size 00
More

03908 000A

NH fuse 6 A
690 V, gG
size 000
More

03909 000A

NH fuse 10 A
690 V, gG
size 000
More

03910 000A

NH fuse 16 A
690 V, gG
size 000
More

03911 000A

NH fuse 20 A
690 V, gG
size 000
More

03912 000A

NH fuse 25 A
690 V, gG
size 000
More

03913 000A

NH fuse 32 A
690 V, gG
size 000
More
