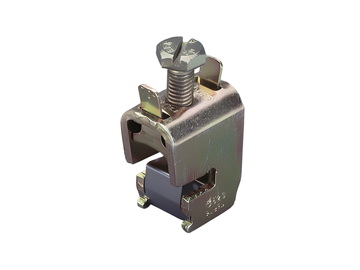

01287000

CRITO^®
universal conductor terminal
16 - 70 mm², AWG 6 - 2/0
for busbars: flat busbars 5 mm
More

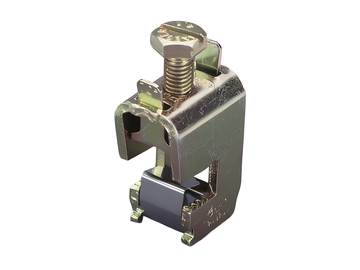

01292000

CRITO^®
universal conductor terminal
16 - 70 mm², AWG 6 - 2/0
for busbars: flat busbars 10 mm and section busbars
More
