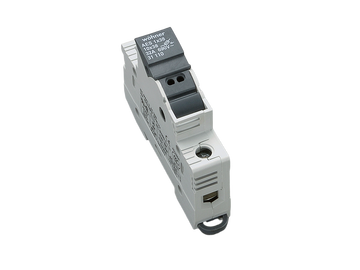

31110 000

AMBUS^®Panel
holder for cylindrical fuses
10 x 38 / 1P
32 A / 690 V
More

31111 000

AMBUS^®Panel
holder for cylindrical fuses
10 x 38 / 1P + N
32 A / 690 V
More

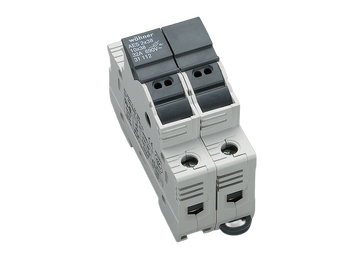

31112 000

AMBUS^®Panel
holder for cylindrical fuses
10x38 / 2P
32 A / 690 V
More

31113 000

AMBUS^®Panel
holder for cylindrical fuses
10x38 / 3P
32 A / 690 V
More

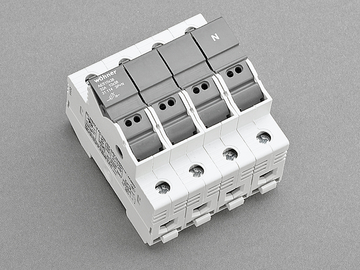

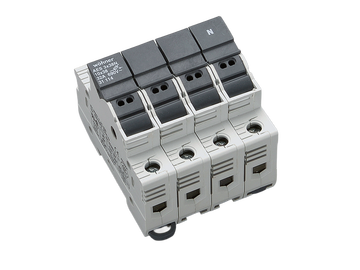

31114 000

AMBUS^®Panel
holder for cylindrical fuses
10x38 / 3P + N
32 A / 690 V
More

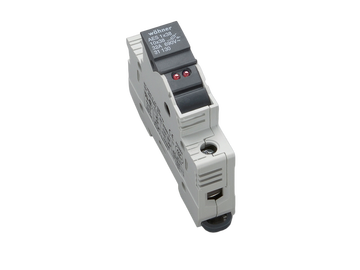

31130 000

AMBUS^®Panel
holder for cylindrical fuses, with LED
10 x 38 / 1P
32 A / 110 - 690 V
indication (LED) of a tripped fuse link
More

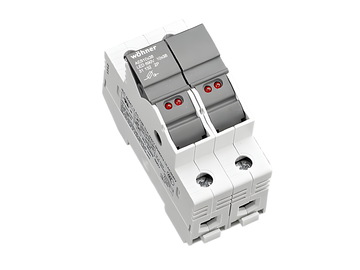

31132 000

AMBUS^®Panel
holder for cylindrical fuses, with LED
10 x 38 / 2P
32 A / 110 - 690 V
indication (LED) of a tripped fuse link
More

31133 000

AMBUS^®Panel
holder for cylindrical fuses, with LED
10 x 38 / 3P
32 A / 110 - 690 V
indication (LED) of a tripped fuse link
More

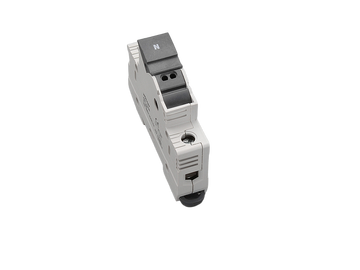

31258 000

AMBUS^®Panel
N module
10 x 38 / N
32 A / 690 V
More

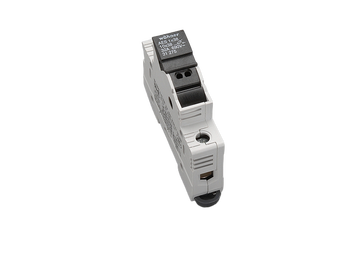

31275 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
10 x 38 / 1P
32 A / 690 V, for semiconductor protection
More

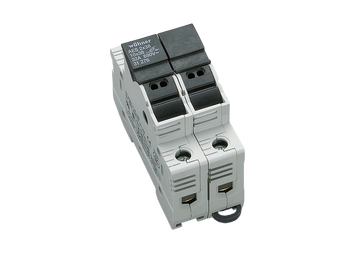

31276 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
10 x 38 / 2P
32 A / 690 V, for semiconductor protection
More

31277 000

AMBUS^®Panel
holder for cylindrical fuses, for semiconductor fuses
10 x 38 / 3P
32 A / 690 V, for semiconductor protection
More

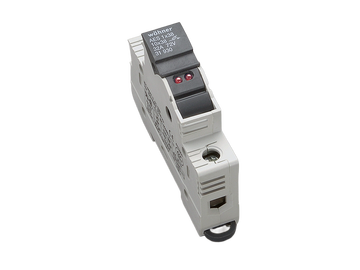

31930 000

AMBUS^®Panel
holder for cylindrical fuses
10 x 38 / 1P / LED
32 A / 12 - 72 V
More

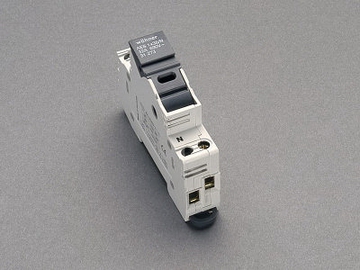

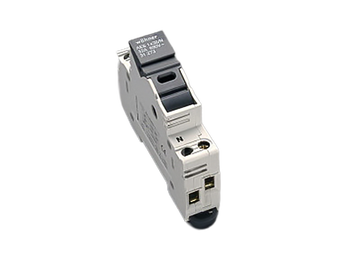

31273 000A

AMBUS^®Panel
holder for cylindrical fuses
10 x 38 / 1P/N
32 A / 690 V, N integrated
More

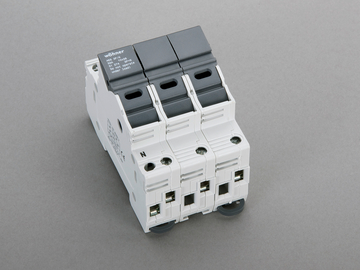

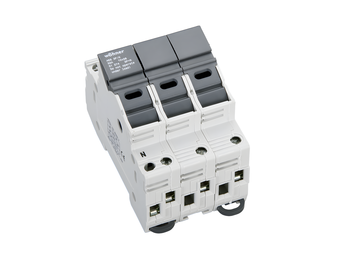

31274 000A

AMBUS^®Panel
holder for cylindrical fuses
10 x 38 / 3P/N
32 A / 690 V, N integrated
More
