for UL feeder circuits >250V

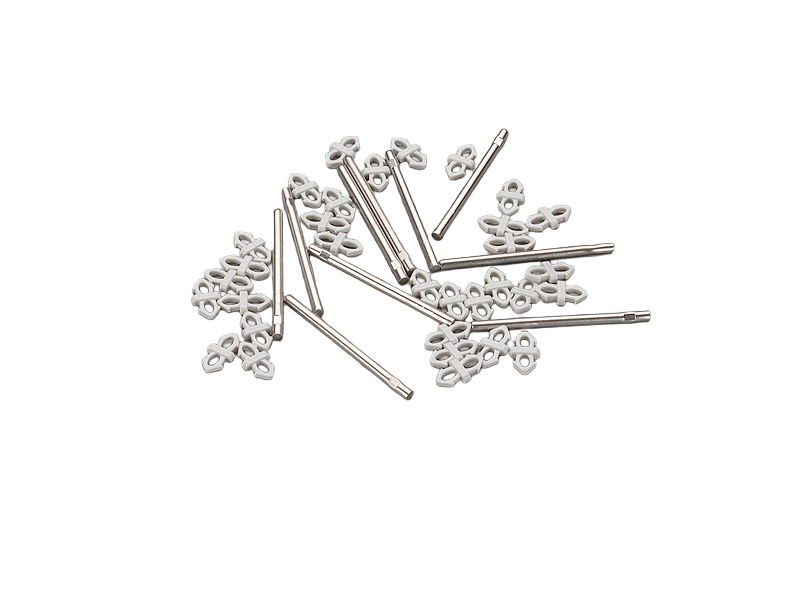

connection kit 14x51, 2-pole

The picture may show a similar product.

Description

Part No.: 31269 000

connection kit 14x51, 2-pole

for 10 2-pole combinations 14x51

Product group 17
Subgroup 15
pack size 1
EAN 4021267312695
ECLASS 14.0 27142190
ETIM 5.0 EC002498
ETIM 8.0 EC002498
ETIM 10.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

EAC Type: AC-A

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
weight: 3.6 kg/100
Material properties
halogen-free: Yes

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

31115 000
AMBUS Panel
holder for cylindrical fuses
14x51 / 1P
50 A / 690 V
for mounting rail
More

31278 000
AMBUS Panel
holder for cylindrical fuses, for semiconductor fuses
14 x 51 / 1P
50 A / 690 V
for mounting rail
More

31135 000
AMBUS Panel
holder for cylindrical fuses, with LED
14 x 51 / 1P
50 A / 110 - 690 V
indication (LED) of a tripped fuse link
for mounting rail
More
