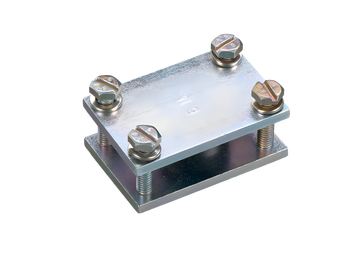

01206000

flat terminal
connection of busbar 40 wide with lam. Cu 20 wide
More

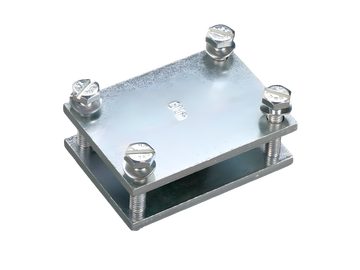

01207000

flat terminal
connection of width 50 and 32
More

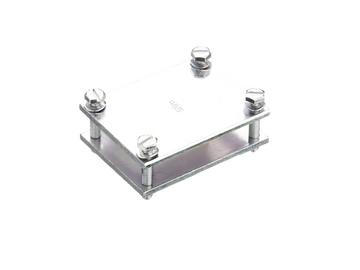

01218000

flat terminal
connection of width 63 and 40
More

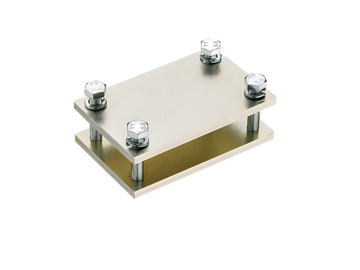

01222000

flat terminal
connection of width 80 and 40
More

01586000

flat terminal
connection of busbar 30 wide with lam. Cu 30 wide
More

01587000

flat terminal
connection of busbar 35 wide with lam. Cu 30 wide
More

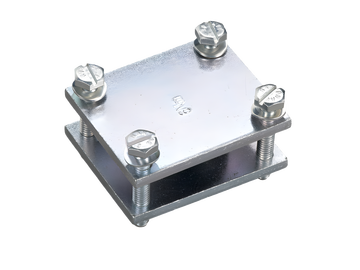

01616000

flat terminal
connection of busbar 40 wide with lam. Cu 32 wide
More

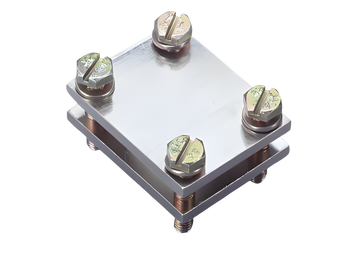

01997000

flat terminal
connection of busbar 30 wide with lam. Cu 20 wide
More

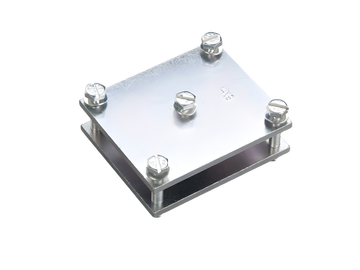

01617000

flat terminal
connection of width 63 and 50
More
