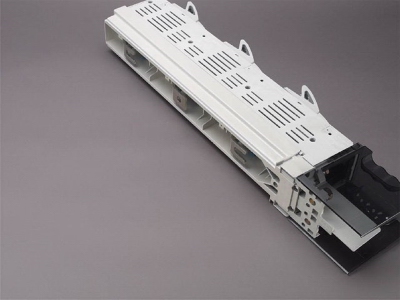

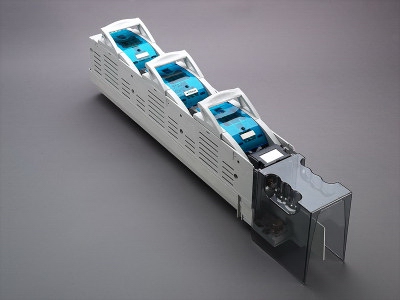

The picture may show a similar product.
Part No.: 33095 000
in-line fuse switch-disconnector 630 A

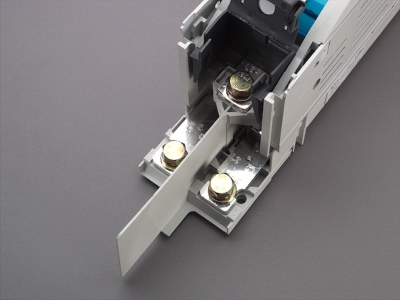

screw M12, single switching
size 3
no longer available
Follower: 33718000A
Advantages of the product
Self-closing inspection holes are available in the cover.
Strips are equipped with arc chambers.
| Product group | 12 |
| Subgroup | 45 |
| pack size | 1 |
| EAN | 4021267330958 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , CCC
type number: SLS3
CCC certificate: 2004010302117259
| permitted power dissipation of the fuse-link: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| size: | NH 3 |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 630 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (500V) AC-22B (690V) AC-21B (690V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 74.2 W.
(The power dissipation at full load would be 116.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| max. permitted operation temperature | 55°C |
| Degree of protection IP20 at front, degree of protection near terminal depends on installation |
| Mechanical data | |
| W x H x D: | 99 x 760 x 195 |
| weight: | 700.0 kg/100 |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 48 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33164
000
clamp connector for Cu cables
120 - 240 mm²
for: QCB-NH2, LTS-F 400, LTS 630
More
33167
000
prism terminal, single, for Cu cables
50 - 240 mm²
More

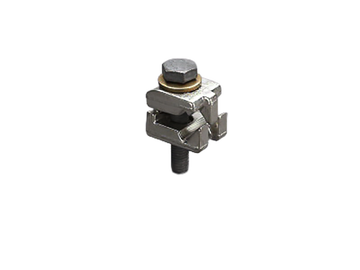

33268
000
direct terminal Cu and Al
size 3
phase-out product
More

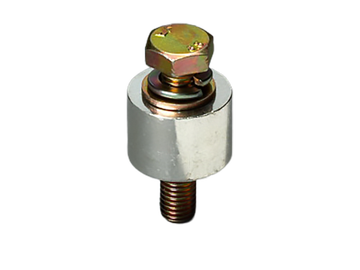

33272
000
extension for 2 cable lugs
size 3
More
33113
000
lateral cover support
for front covers
size 00 - 3
More
33156
000
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
More
