Part No.: 37530 000A
QUADRON®185Power
in-line fuse switch-disconnector 160 A
Size 00, 3-pole switchable
high version with V-clamp 16-120 mm²
terminal body alu, pressure piece steel

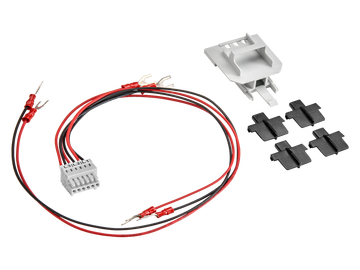

prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
for busbars 30, 40, 60, 80, 100, 120 x 10
coming soon
System
185Power
Advantages of the product
Self-closing inspection holes are available in the cover.
Cover can be locked when closed.
| Product group | 12 |
| Subgroup | 62 |
| pack size | 1 |
| EAN | 4021267375300 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
type number: QU185-00 Pre-Assembled
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 150 A |
| rated voltage (IEC) AC: | 800 V |
| accuracy class (current): | 0.5 |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (800 V / 63 A) |
| Utilisation category DC (IEC 60947-3) : | DC-20B max. voltage between the fuses: 1000V visible information required: Do not switch under load. |
| cond. short-circuit current with fuses (AC): | 30 kA / 800 V (63 A) |
| 100 kA / 690 V | |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 17.9 W.
(The power dissipation at full load would be 28.0 W.)
| Degree of protection IP20 at front, degree of protection near terminal depends on installation |
| Mechanical data | |
| W x H x D: | 50 x 687 x 189 |
| weight: | 298.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
| front degree of protection: | IP20 |
| degree of protection when open: | IP10 |
Befestigungsart:
auf gebohrter Sammelschiene anschraubbar, bohrungslos mit Klemmbügel
Anschluss: V-Klemme
| Terminal points | |
| v-clamp | |
| min. cross-section: | 16 mm² |
| max. cross-section: | 120 mm² |
| re: | 16 - 95 mm² |
| rm: | 16 - 95 mm² |
| se: | 25 - 120 mm² |
| sm: | 25 - 120 mm² |
|
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
| Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33739
000A

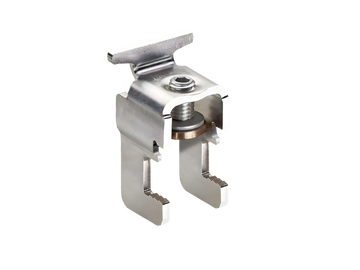

terminal clamp
for busbar systems without system covers
size 00
More
33765
000A
CrossLink® terminal clamp IP20
for busbar systems with touch-safe protection
size 00
More
33557
000A

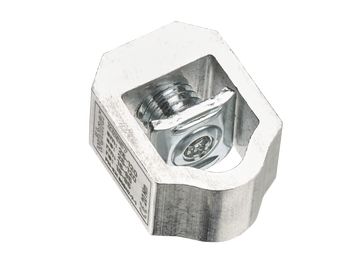

V-clamp
terminal body alu, pressure piece steel
size 00
for Cu / Al 16 - 120 mm²
NEW
More
33732
000A

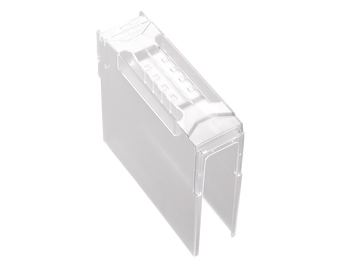

terminal compartment cover, high version, connection bottom
for 33700, 33715, 33720, 33770, 33771, 33772 and QUADRON®185Power Speed size 00
size 00
More
33113
000

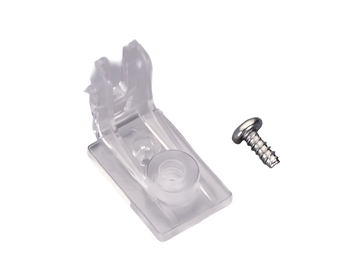

lateral cover support
for front covers
size 00 - 3
More
33758
000A

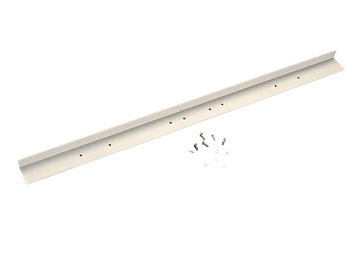

lateral bearing strip
for front covers
size 00 - 3
More
33156
000

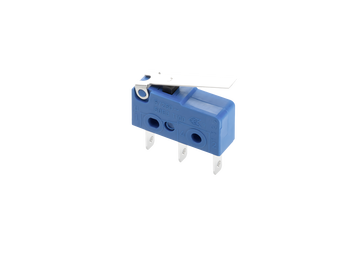

pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
More
