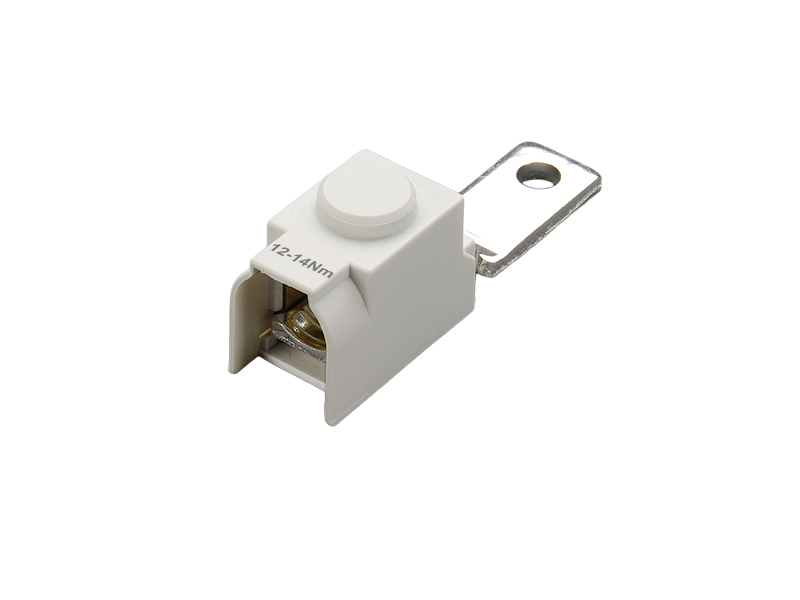

The picture may show a similar product.
Part No.: 33378000
connecting terminal, front connection
for 3-pole comb-type busbar 35 mm², suitable for NH-fuse-switch-disconnector size 00 with screw connection
25 - 95 mm²
Advantages of the product
Shock protection: as per DIN EN 50274/BGV A3
| Product group | 09 |
| Subgroup | 51 |
| pack size | 3 |
| EAN | 4021267333782 |
| catalog page | 2020 : 6.14 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
EAC
EAC Type: AC-A
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| rated insulation voltage: 800V at pollution degree 2; 690V at pollution degree 3 | |
| Conductor connection: Cu 25-95mm² s(r); Cu 35-95mm² s(s); Cu 25-70mm² f+AE | |
| Degree of protection: IP 20 at front in combination NH-LTS, comb-type busbar and connecting terminal possible. Degree of protection near terminal depends on installation. |
| Mechanical data | |
| W x H x D: | 23 x 32 x 86 |
| weight: | 12.1 kg/100 |
| Terminal points | |
| min. cross-section: | 25 mm² |
| max. cross-section: | 95 mm² |
Reference
Recommended installation situation:
Feed with the comb-type busbar at NH-LTS from below.
Reductions are to be taken into consideration for different installation situations and conditions of use.
