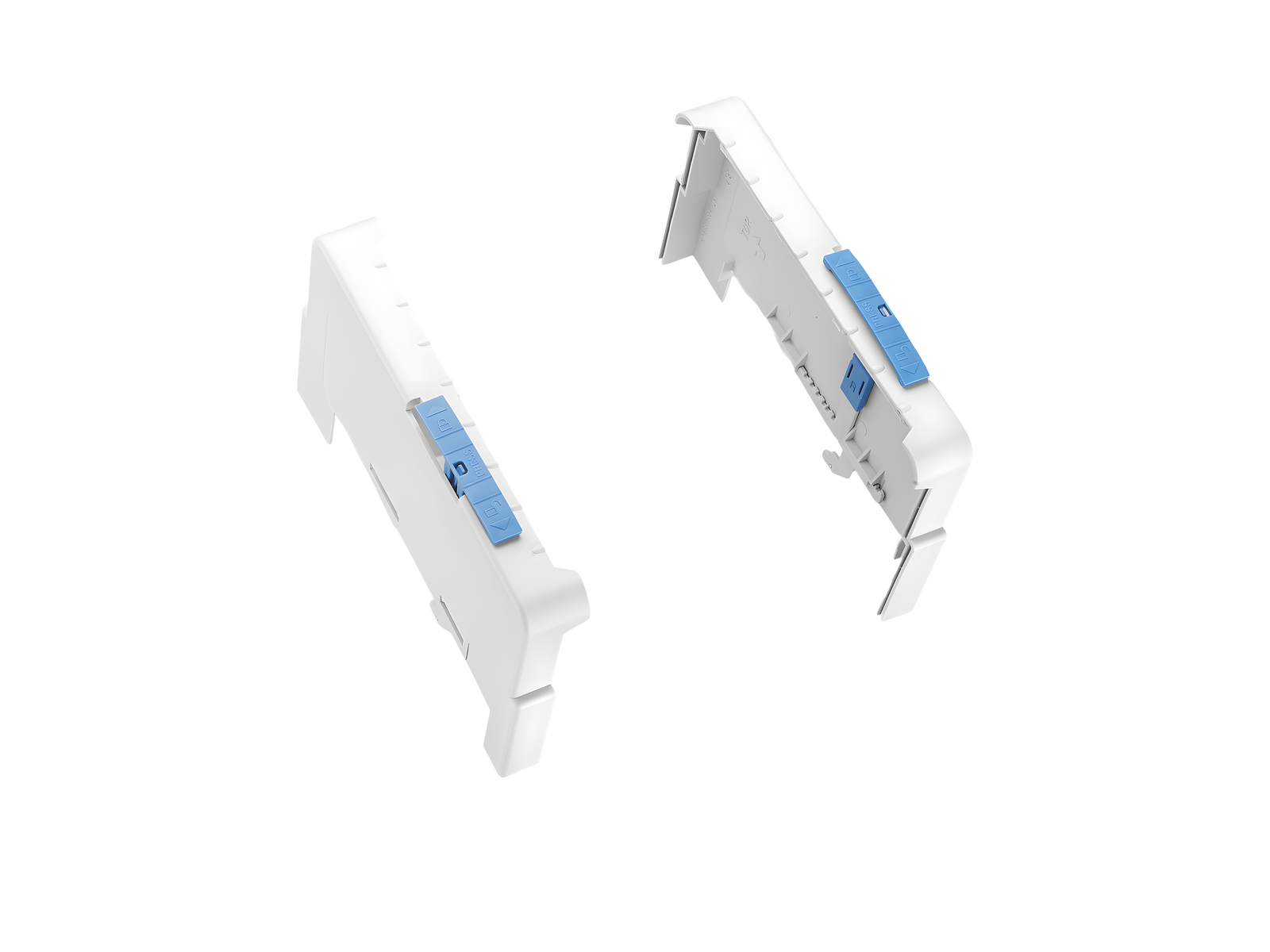

The picture may show a similar product.
Part No.: 01136000
set of holders for cover sections
for 3-pole busbar systems
set consisting of left and right holder, for covers 01554, 01555 and 01417
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 07 |
| Subgroup | 36 |
| pack size | 1 |
| EAN | 4021267011369 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002848 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approvals
CSA , UL , DNV GL
for UL feeder circuits >250V
type number: TC60-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 28 x 204 x 92 |
| weight: | 18.0 kg/100 |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
| for UL feeder circuits >250V | |
