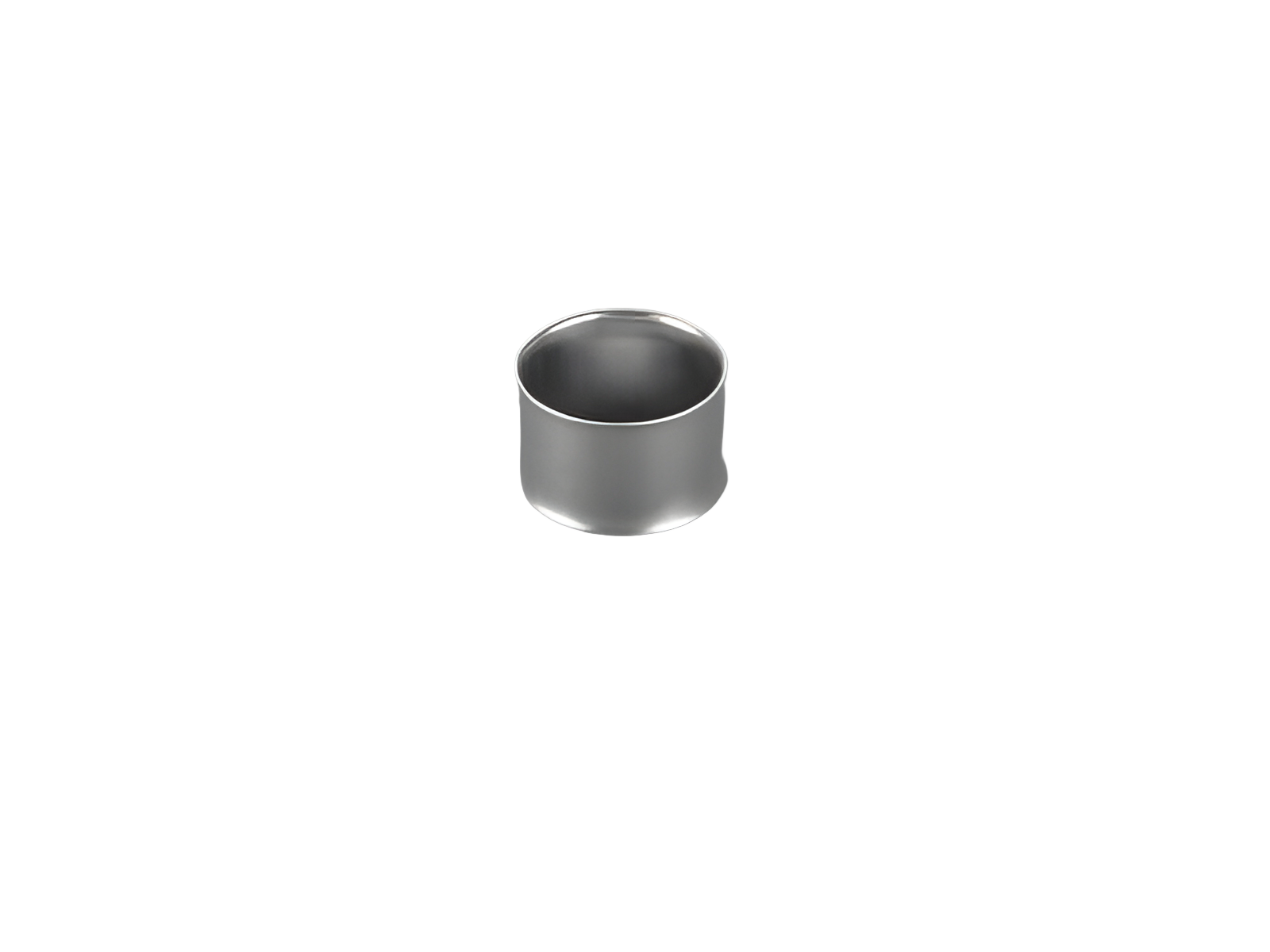

D02 gauge ring 50 A (01722)

The picture may show a similar product.

Description

Part No.: 01722 000

D02 gauge ring 50 A

white

E 18

Product group 22
Subgroup 03
pack size 50
EAN 4021267017224
ECLASS 6.1 27142111
ECLASS 7.1 27142111
ETIM 4.0 EC000278
ETIM 5.0 EC000278

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

size: D02 / E 18
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
rated current (IEC): 50 A

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight: 0.1 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

accessories for fuses

01729 000

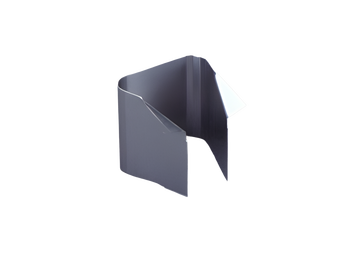

special-retaining spring for D01 - E 18
2 - 16 A
More

01730 000

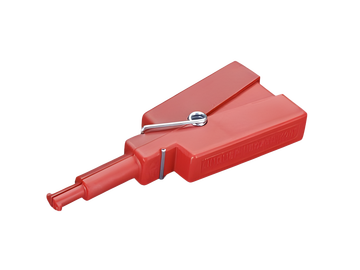

gauge ring tool
D01 - D03
More

Usage

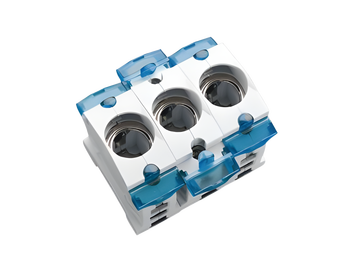

31306 000
CUSTO®Panel
D0 fuse base, panel-mounting
E 18 / 63 A / 3P
touch protected
for mounting rail
More

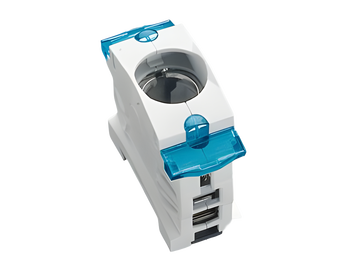

31303 000
CUSTO®Panel
D0 fuse base, panel-mounting
E 18 / 63 A / 1P
touch protected
for mounting rail
More
