32214000

EQUES^®60Classic
busbar adapter 200 A
terminals 6 - 70 mm² at top
108 x 222
connection to the system top
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32215000

EQUES^®60Classic
busbar adapter 200 A
terminals 6 - 70 mm² at bottom
108 x 222
connection to the system bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32168000

EQUES^®60Classic
busbar adapter 250 A
terminals 35 - 120 mm² at top
110 x 320
connection to the system top
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32216000

EQUES^®60Classic
busbar adapter 250 A
terminals 35 - 120 mm² at bottom
110 x 320
connection to the system bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32070000AC

EQUES^®60Classic
busbar adapter 250 A, 3-pole
with laminated copper (top), with UL approval
105 x 200
phase distance 35 mm
connection to the system top
for: ABB T3, T4, XT3, XT4 / Eaton NZM2 / Schneider Electric NSX 250 / Siemens 3VA12, 3VA20, 3VA21, 3VA22
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32071000AC

EQUES^®60Classic
busbar adapter 250 A, 3-pole
with laminated copper (bottom), with UL approval
105 x 200
phase distance 35 mm
connection to the system bottom
for: ABB T3, T4, XT3, XT4 / Eaton NZM2 / Schneider Electric NSX 250 / Siemens 3VA12, 3VA20, 3VA21, 3VA22
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32072000B

EQUES^®60Classic
busbar adapter 250 A, 3-pole
with laminated copper (top)
105 x 200
phase distance 35 mm
connection to the system top
for: ABB T3, T4, XT3, XT4 / Eaton NZM2 / Schneider Electric NSX 250 / Siemens 3VA12, 3VA20, 3VA21, 3VA22
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32073000B

EQUES^®60Classic
busbar adapter 250 A, 3-pole
with laminated copper (bottom)
140 x 260
phase distance 35 mm
connection to the system bottom
for: ABB T3, T4, XT3, XT4 / Eaton NZM2 / Schneider Electric NSX 250 / Siemens 3VA12, 3VA20, 3VA21, 3VA22
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

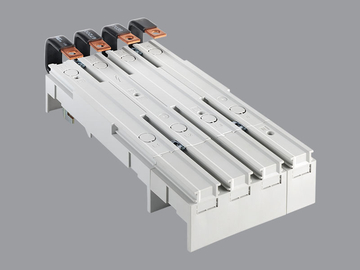

32074000B

EQUES^®60Classic
busbar adapter 250 A, 4-pole
with laminated copper (top)
140 x 260
phase distance 35 mm
connection to the system top
for: ABB T3, T4, XT3, XT4 / Eaton NZM2 / Schneider Electric NSX 250 / Siemens 3VA12, 3VA20, 3VA21, 3VA22
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
