Арт.: 37531 000A
QUADRON®185Power
Линейный выключатель-разъединитель с предохранителями 250 A
Типоразмер 1, 1-полюсное отключение
V-clamp 50-300 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
для шин 30, 40, 60, 80, 100, 120 x 10
coming soon
Система
185Power
Преимущества продукта
Self-closing inspection holes are available in the cover.
Cover can be locked when closed.
Группа продуктов | 12 |
Подгруппа | 63 |
Кол-во | 1 |
EAN | 4021267375317 |
ECLASS 6.1 | 27142108 |
ECLASS 7.1 | 27142108 |
ETIM 4.0 | EC001046 |
ETIM 5.0 | EC001046 |
Стандарты
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
номер типа: QU185-1 Pre-Assembled
для предохранителей размера: | NH 1 |
предохранители в соответствии со стандартом: | IEC / HD 60269-2 |
допустимая мощность рассеивания плавкой вставки: | 23 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
Подробности IEC | |
Стандарты | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Электрические данные IEC | |
Номинальный ток (IEC): | 250 A |
номинальное напряжение (IEC) AC: | 800 В |
accuracy class (current): | 1 |
номинальное напряжение изоляции U i AC: | 1000 В |
номинальное импульсное напряжение U imp : | 12 kV |
Катагория применения AC: | AC-22B (800 V / 160 A) |
Категория применения DC: | DC-20B max. voltage between the fuses: 1000V visible information required: Do not switch under load. |
cond. short-circuit current with fuses (AC): | 80 kA / 800 V (160 A) |
100 kA / 690 V (250 A) | |
120 kA / 500 V (250 A) | |
одобрено с плавкими вставками рабочего класса: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 15,4 Вт.
(The power dissipation at full load would be 24,0 Вт.)
Дополнительные данные IEC | |
Следующие значения были проверены в ходе испытаний при определенных условиях. Для конкретного проектирования установки необходимо получить у компании Wöhner соответствующие условия. |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
Besondere Betriebsbedingungen gemäß IEC / EN 61439-1 können zu Fehlauslösungen von Meldeschaltern oder Sicherungsüberwachungen führen. Die vorliegenden Betriebsbedingungen sind dementsprechend bei der Auswertung der Meldesignale zu berücksichtigen. | |
Degree of protection IP20 at front, degree of protection near terminal depends on installation |
Механические данные | |
Ш x В x Г: | 100 x 687 x 189 |
Вес: | 543,0 kg/100 |
Полюсность: | 3-пол. |
для шин: | 30, 40, 60, 80, 100, 120 x 10 |
фронтальная степень защиты: | IP20 |
degree of protection when open: | IP10 |
Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled mounting with terminal clamp
Особенности клеммной техники | |
v-clamp | |
min. cross-section: | 50 мм² |
max. cross-section: | 300 мм² |
re: | 70 - 150 mm² |
rm: | 50 - 120 mm² |
se: | 35 - 240 mm² |
sm: | 35 - 185 mm² |
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
The terminal compartment cover 33733 is always needed for the connection at top and when using cable lugs. |
|
допустимая мощность рассеивания плавкой вставки: | 23 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33740
000A
Клеммный зажим
for busbar systems without protection modules
Типоразмер 1 - 3
More
33738
000A
CrossLink® клеммный зажим
Для шинных систем с CrossLink® защитой от прикосновения
Типоразмер 1 - 3
More
33559
000B
V-clamp
with cover cap
terminal body alu, pressure piece brass
Типоразмер 1 - 3
for Cu / Al 50 - 300 mm²
НОВЫЙ
More
33733
000A
Крышка клеммного отсека
Универсальная для HN устройств типоразмер 1 - 3 и соединений до 800 А
Типоразмер 1 - 3
More
33758
000A
Продольная соединительная полоса
Для передних крышек
Типоразмер 00 - 3
More
37902
000A

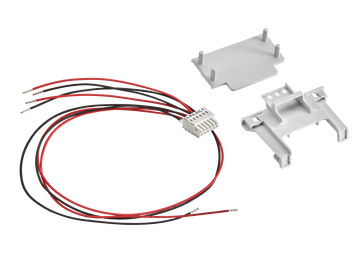

Connection kit LTL NH1-3 for RJ12 cable
