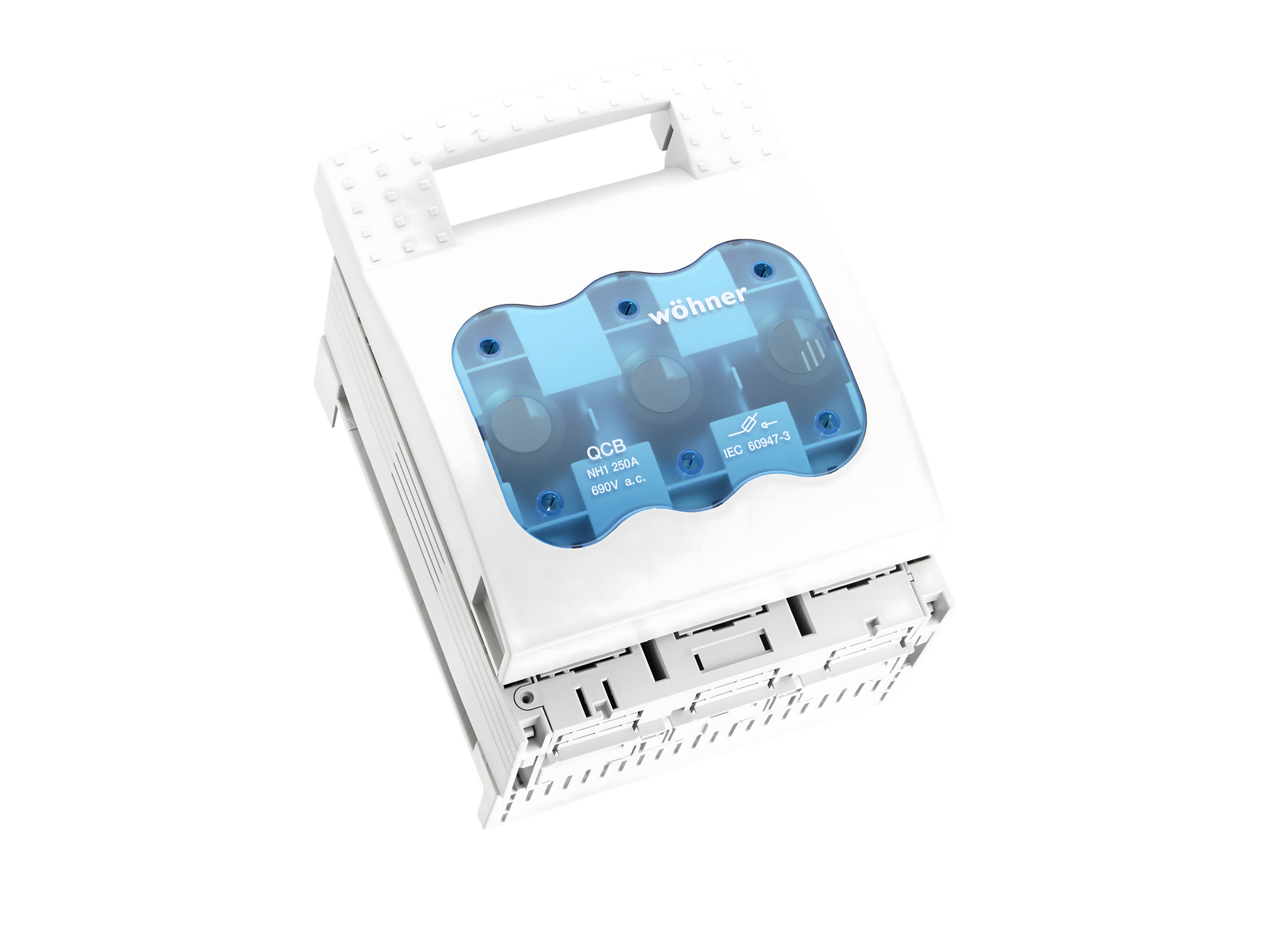

The picture may show a similar product.
Référence 33600000
QUADRON®60Classic
sectionneur à fusible NH taille 1, 250 A, montage sur rail, raccordement par le haut / par le bas
borne à cage
raccordement par le haut ou par le bas
pour jeux de barres 12, 15, 20, 25, 30 x 5, 10 et barres profilées
avec CrossLink®Technology
Système
60Classic
Avantages produit
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other
Self-closing test holes are available in the cover.
| Groupe de produits | 09 |
| Sous-groupe | 27 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267336004 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approbations
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
Type: QCB-NH1
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Normes | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Courant assigné (IEC): | 250 A |
| Tension assignée (IEC) CA: | 690 V |
| Tension assignée (IEC) CC: | 440 V |
| rated isolation voltage Ui AC: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
| Catégorie d'emploi CA: | AC-22B (400 V) AC-23B (400 V / 160 A) AC-21B (690 V) AC-20B (1000 V) at pollution degree 2 to obtain a higher utilisation category the product can be retrofitted with arcing chambers (see accessories) visible information required if used at more than 690V AC: do not switch under load |
| Catégorie d'emploi CC: | DC specifications: 2 current paths (L1,L3) in series DC-20B (440 V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| cond. short-circuit current with fuses (AC): | 100 kA / 690 V |
| approved wth fuse links of operation class: | gG |
| rated peak withstand current Ipk max.: | 13.7 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 8.1 kA |
| Icw approved with: | Trennmesser |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 16,6 W.
(The power dissipation at full load would be 26,0 W.)
| Supplementary data IEC | |
|
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
| Tension maximale IEC CA: | 725 V |
| Tension maximale IEC CC: | 800 V |
| Les unités de commutation à fusibles conformes à la norme IEC 60947-3 ne peuvent fonctionner au-delà de la tension de service nominale que si elles sont utilisées comme sectionneurs à fusible sans fonction de commutation de charge et cela jusqu'à la tension d'isolement assignée et sont marquées en conséquence. |
| In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, the distances to earthed metal parts given below are to be adhered to. - top 190mm, side 75mm When used as a disconnector, the spacings can be ignored. |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Details UL | |
| Normes | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 250 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Icc: | 100 kA |
| Charactéristiques mécaniques | |
| L x H x P: | 184 x 243 x 129 |
| Poids: | 266,0 kg/100 |
| Pôles: | 3 pôles |
| pour jeux de barres: | 12, 15, 20, 25, 30 x 5, 10 et barres profilées |
| front degree of protection: | IP30 |
| Points de raccordement | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 22 mm |
| min. cross-section: | 35 mm² |
| max. cross-section: | 185 mm² |
| Md min.: | 9,6 Nm |
| Md max.: | 14,4 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| Les unités de commutation à fusibles conformes à la norme IEC 60947-3 ne peuvent fonctionner au-delà de la tension de service nominale que si elles sont utilisées comme sectionneurs à fusible sans fonction de commutation de charge et cela jusqu'à la tension d'isolement assignée et sont marquées en conséquence. | |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
