for UL feeder circuits >250V

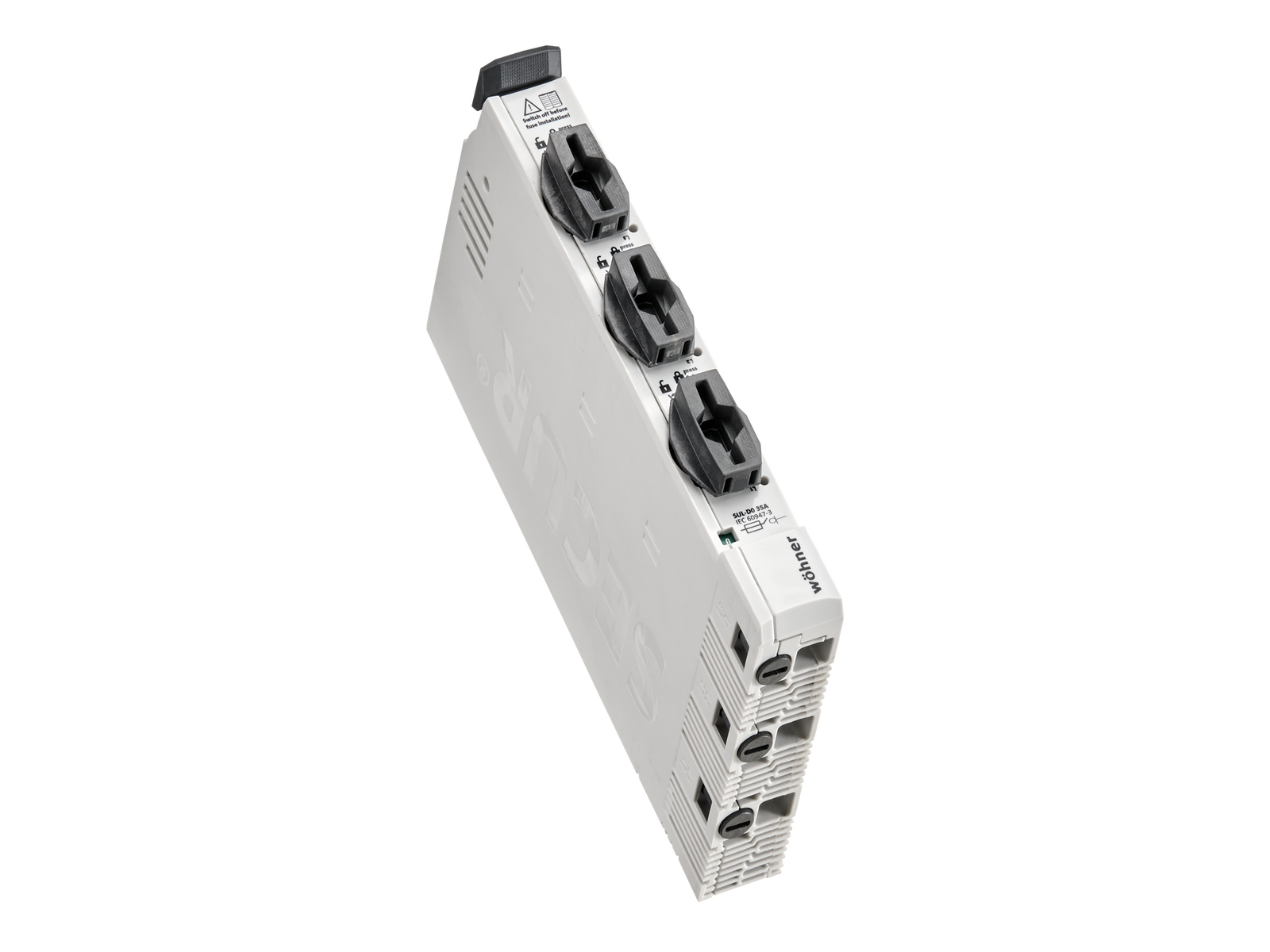

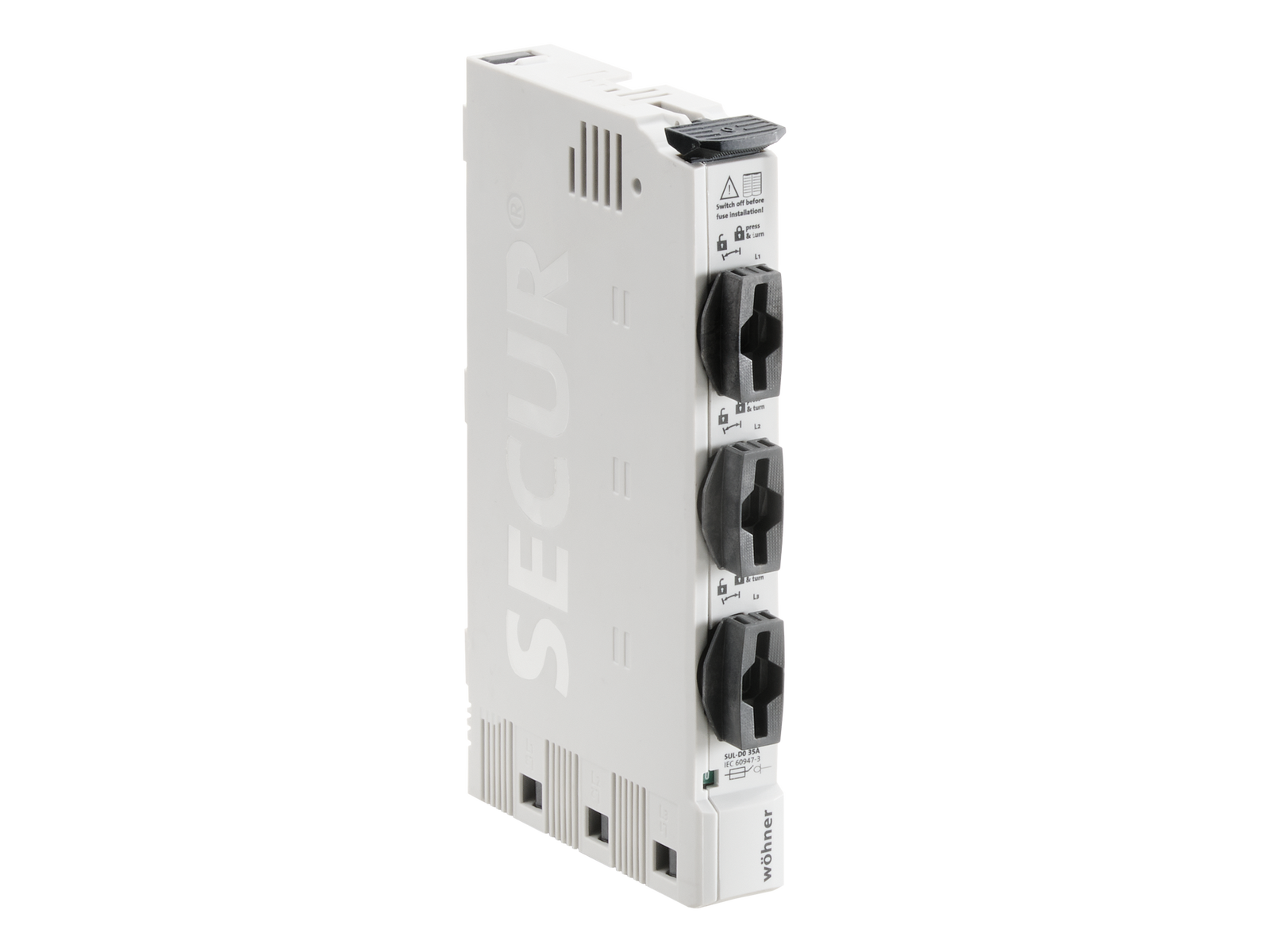

The picture may show a similar product.
Référence 31264000A
interrupteur-sectionneur à fusibles D0 pour jeu de barres
for fuses Class CC UL 248-4
3P
operator independent switching (snap-action mechanism)
raccordement par le bas
coming soon
Système
CrossBoard® 125A / 250A, CrossBoard® 800 A
Avantages produit
spring terminal enables connection without tools (at first installation)
| Groupe de produits | 01 |
| Sous-groupe | 53 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267312640 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approbations
CCC
| for fuse links size: | 10x38 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| Details IEC | |
| Normes | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Charactéristiques électriques | |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| Electrical data UL | |
| rated current (UL): | 30 A |
| rated voltage (UL) AC: | 600 V |
| Charactéristiques électriques | |
| Icc: | 200 kA |
| Charactéristiques mécaniques | |
| L x H x P: | 22.5 x 184 x 100 |
| Poids: | 33,0 kg/100 |
| Pôles: | 3 pôles |
| front degree of protection: | IP20 |
Type of fastening: patented click mechanism
| Points de raccordement | |
| spring pulley connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 12 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 16 mm² |
| Not suitable for aluminium cables ! | |
| min. cross-section UL: | AWG 16 |
| max. cross-section UL: | AWG 6 |
| Not suitable for aluminium cables ! | |
