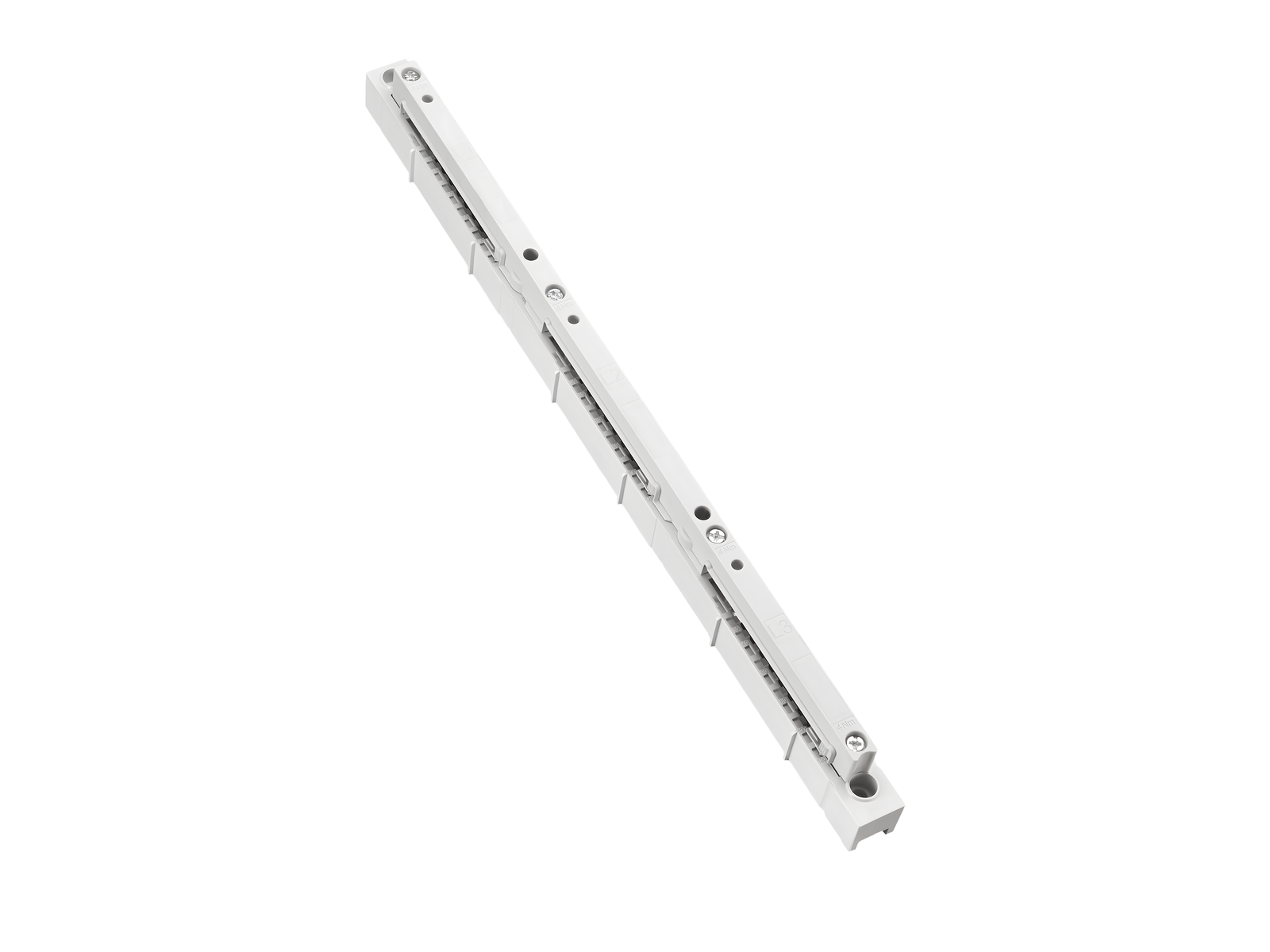

The picture may show a similar product.
Part No.: 01430000A
universal busbar support
for busbars 30, 40, 60, 80, 100, 120 x 10
System
185Power
| Product group | 06 |
| Subgroup | 24 |
| pack size | 4 |
| EAN | 4021267014308 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: S185-A120
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 800 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| rated peak withstand current Ipk max.: | 106 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1500 V |
| short-circuit capacity IEC / EN : Ipk max. = 106 kA (busbars 120x10, 2 busbar supports in 550 mm distance) go to calculation for 3-pole system (IEC) |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated voltage (UL) AC: | 1000 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 1000 V |
| SCCR unprotected max.: | 50 kA |
| 3 cycles (without OPD) @ 1000 V AC |
| Mechanical data | |
| W x H x D: | 30 x 583 x 59 |
| weight: | 50.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
| The insulation performance of the article depends on the installation conditions. | |
|
Reference |
Torque with 4Nm for screw M6 or M8 on mounting plate 3mm |
| for UL feeder circuits >250V | |
