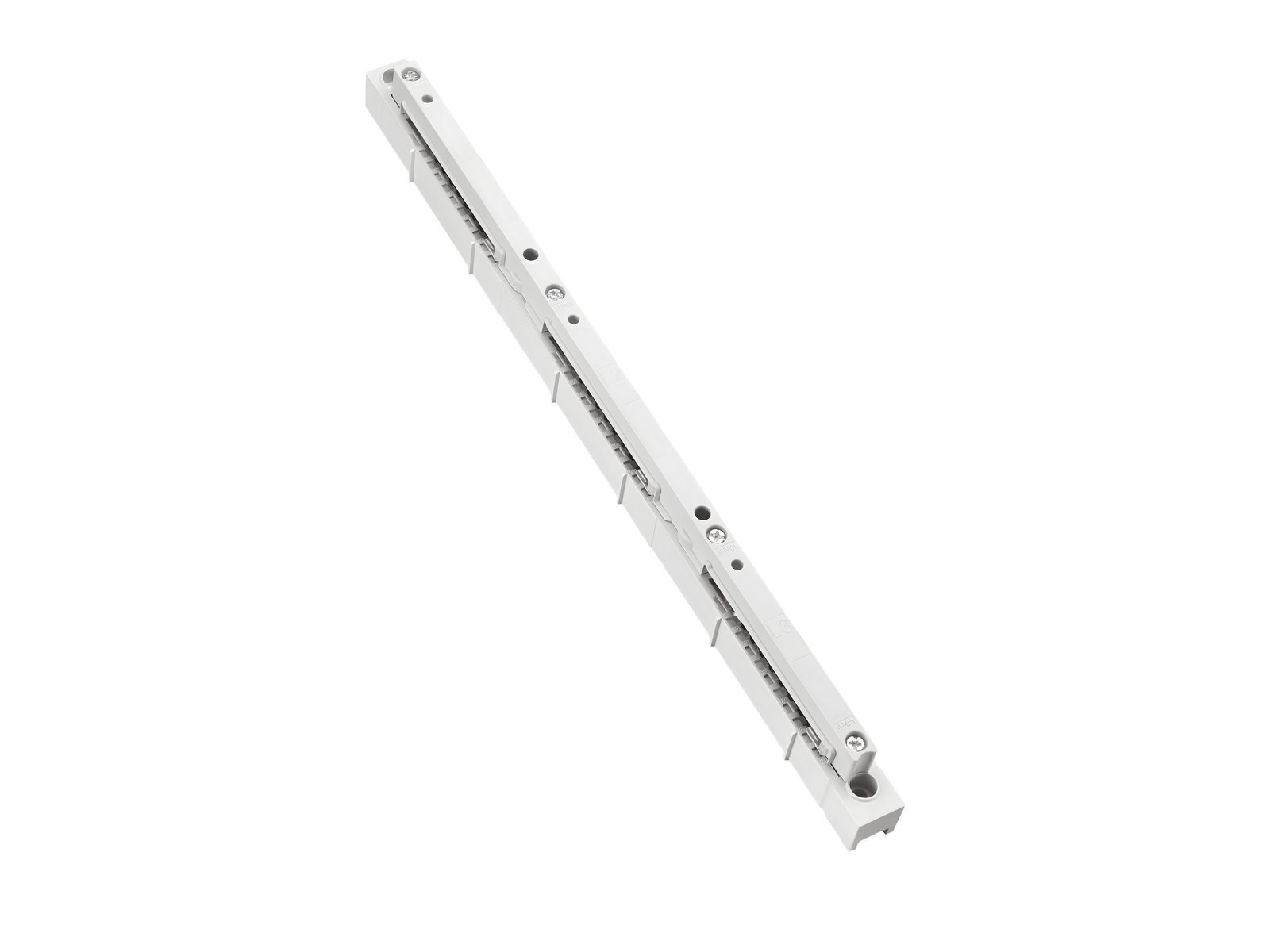

universal busbar support (01430)

The picture may show a similar product.

Description

Part No.: 01430000A

universal busbar support

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group 06
Subgroup 24
pack size 4
EAN 4021267014308
ECLASS 6.1 27400607
ECLASS 7.1 27400607
ETIM 4.0 EC001166
ETIM 5.0 EC001166

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: S185-A120

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
rated voltage (IEC) AC: 800 V
rated frequency (IEC): 50 / 60 Hz
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 8 kV
rated peak withstand current  Ipk max.: 106 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) DC: 1500 V
short-circuit capacity IEC / EN :
Ipk max. = 106 kA (busbars 120x10, 2 busbar supports in 550 mm distance)
go to calculation for 3-pole system (IEC)
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated voltage (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 1000 V
SCCR unprotected max.: 50 kA
3 cycles (without OPD) @ 1000 V AC
Mechanical data
W x H x D: 30 x 583 x 59
weight: 50,0 kg/100
poles: 3-pole
for busbars: 30, 40, 60, 80, 100, 120 x 10

Application notes

The insulation performance of the article depends on the installation conditions.

Reference

Torque with 4Nm for screw M6 or M8 on mounting plate 3mm

for UL feeder circuits >250V

Links

Downloads

Accessories

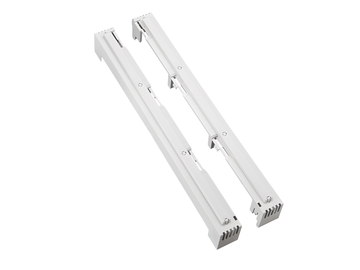

01431000A
end cover for busbar support 01430
set for one left and one right busbar support
More

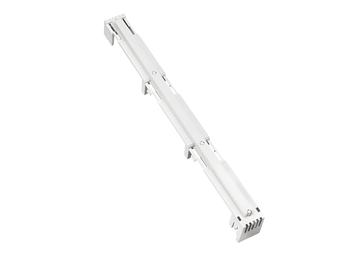

01432000A
centre cover for busbar support 01430
when using the busbar support as a centre support
More

01421000A
spacer
set, suitable for 01430
More

01420000A
system shrouding, rear
set for busbar support distance 550 mm (centre to centre)
More

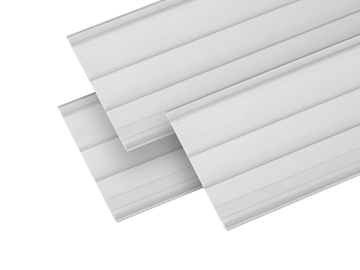

01436000A
system shrouding, rear
set for busbar support distance 700 mm (centre to centre)
More
