01242 000A

busbar cover
for 12 x 5 busbar, 1 m long
touch protection cover
More

01244 000

busbar cover
for 12 - 30 x 5 busbar, 1 m long
touch protection cover
More

01245 000

busbar cover
for 12 - 30 x 10 busbar, 1 m long
touch protection cover
More

01252 000

busbar cover
for double-T and triple-T section, 1m long
touch protection cover
More

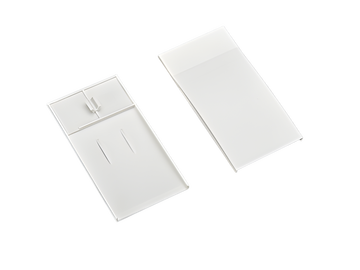

01373 000

end cover
for busbar supports 01116 and 01132
More

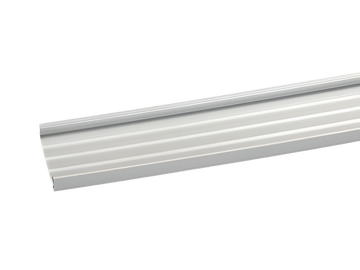

01236 000

compartment section
48 mm deep, 2.40 m long
More

01237 000

compartment section
76 mm deep, 2.40 m long
More

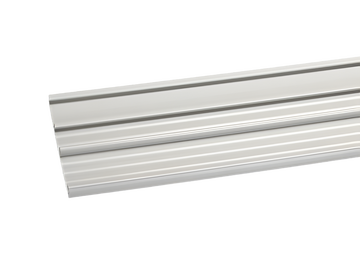

01238 000

compartment section
106 mm deep, 2.40 m long
2400 x 106
More

01011 000

bottom trough
290 x 1100
More

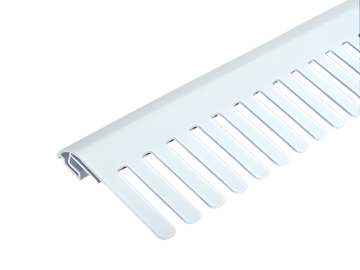

01030 000

compartment section
slotted
17 x 86 x 2400
More

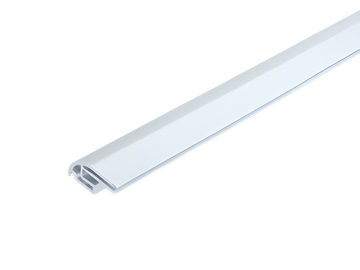

01037 000

trough edge section
slim
17 x 36 x 1100
More

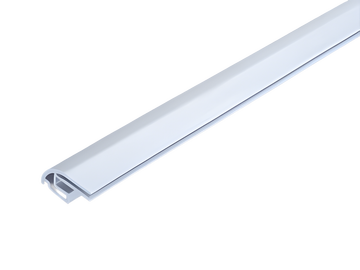

01038 000

trough edge section
slim
17 x 36 x 700
More

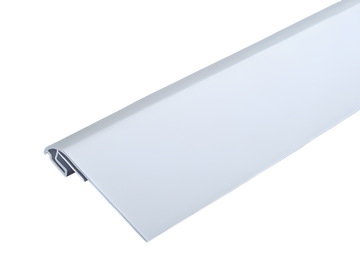

01039 000

compartment section
closed
17 x 86 x 1100
More

01040 000

compartment section
closed
17 x 86 x 700
More

01041 000

compartment section
slotted
17 x 86 x 1100
More

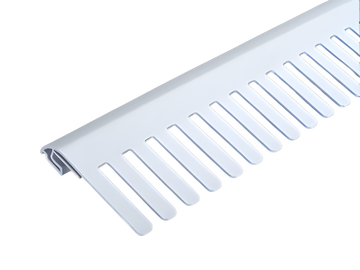

01042 000

compartment section
slotted
17 x 86 x 700
More

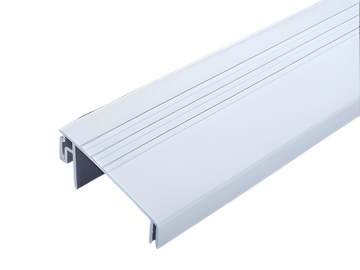

01043 000

trough edge section
wide
77 x 36 x 1100
More

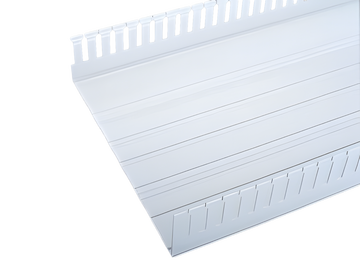

01046 000

bottom trough
290 x 2400
More

01048 000

trough edge section
slim
17 x 36 x 2400
More

01137 000

set of holders for cover sections
for 4-pole busbar systems
set consisting of left and right holder, for covers 01599, 01555 and 01417
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

01599 000

front cover section, for 4-pole systems
front mounted, 1.10 m long, for holder 01137
3 x 250 x 1100
More

01417 000

cover section
top / bottom, slotted, 1.10 m long, for holders 01136 or 01137
3 x 118 x 1100
More

01555 000

cover section
top / bottom, 1.10 m long, for holders 01136 or 01137
3 x 109 x 1100
More
