01065000A

CRITO^®CrossBoard
connection module
300 mm², for rear feeding of the CrossBoard
3-pole
connection top or bottom
for: CrossBoard 800 A 500 - 1100 mm
coming soon
More

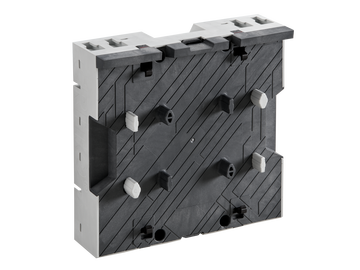

01067000A

CRITO^®CrossBoard
fastening module
at rear feeding
no electrical connection
for: CrossBoard 800 A 500 - 1100 mm
coming soon
More
