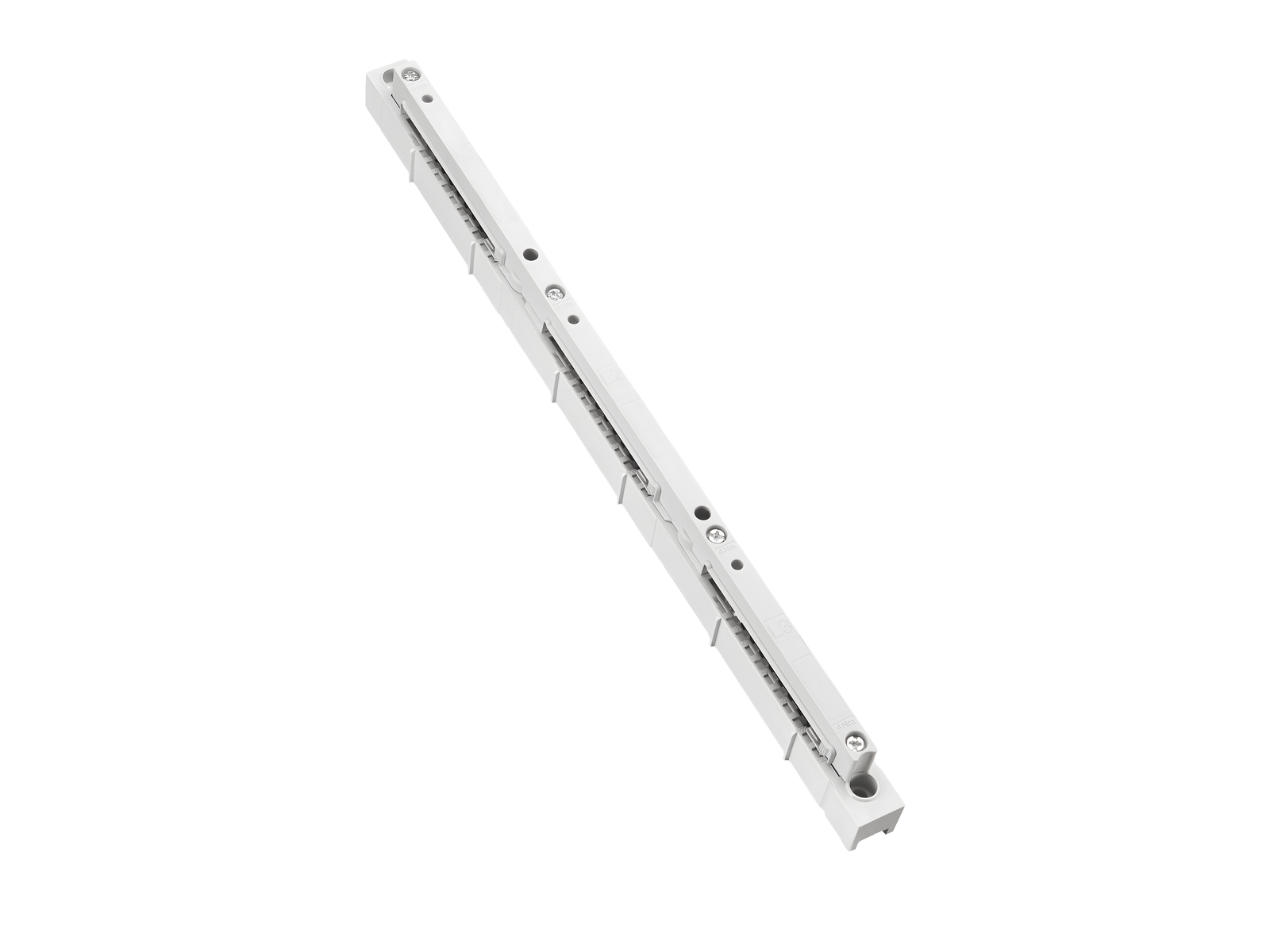

The picture may show a similar product.
Part No.: 01430 000A
universal busbar support
for busbars 30, 40, 60, 80, 100, 120 x 10
System
185Power
| Product group | 06 |
| Subgroup | 24 |
| pack size | 4 |
| EAN | 4021267014308 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: S185-A120
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 800 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 1000 V |
| rated surge voltage Uimp : | 8 kV |
| rated peak withstand current Ipk max.: | 106 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) DC: | 1500 V |
| short-circuit capacity IEC / EN : Ipk max. = 106 kA (busbars 120x10, 2 busbar supports in 550 mm distance) go to calculation for 3-pole system (IEC) |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated voltage (UL) AC: | 1000 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 1000 V |
| SCCR unprotected max.: | 50 kA |
| 3 cycles (without OPD) @ 1000 V AC |
| Mechanical data | |
| W x H x D: | 30 x 583 x 59 |
| weight: | 50.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
| The insulation performance of the article depends on the installation conditions. | |
|
Torque with 4Nm for screw M6 or M8 on mounting plate 3mm |
|
| for UL feeder circuits >250V |
01421
000A
spacer
set, suitable for 01430
More

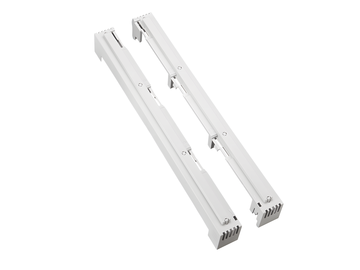

01431
000A
end cover for busbar support 01430
set for one left and one right busbar support
More

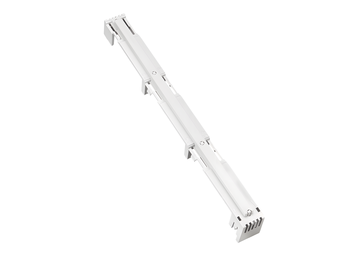

01432
000A
centre cover for busbar support 01430
when using the busbar support as a centre support
More
01420
000A
system shrouding, rear
set for busbar support distance 550 mm (centre to centre)
More

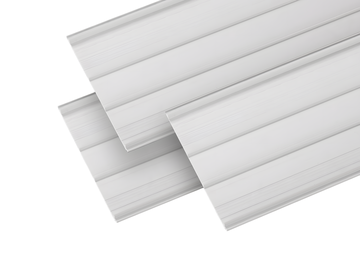

01436
000A
system shrouding, rear
set for busbar support distance 700 mm (centre to centre)
More
