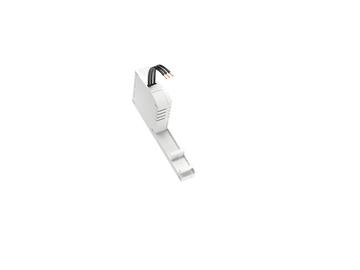

36009000A

EQUES^®CrossBoard
adapter 16 A
1 fixed mounting rail, with fuse-carrier 10x38 / Class CC
22.5 x 160, with leads AWG 14 (2.5 mm²)
More

32666000A

EQUES^®CrossBoard
adapter 16 A
1 fixed mounting rail, with leads AWG 14 (2.5 mm²)
45 x 160
stock sale
More

32668000A

EQUES^®CrossBoard
adapter 16 A
1 adjustable mounting rail, with leads AWG 14 (2.5 mm²)
45 x 160
More

32669000A

EQUES^®CrossBoard
adapter 16 A
1 adjustable mounting rail, with leads AWG 14 (2.5 mm²) 160 mm long, for devices with spring terminal technology
45 x 160
More

32676000A

EQUES^®CrossBoard
adapter 25 A
1 adjustable mounting rail, with leads AWG 12 (4 mm²)
45 x 160
More

32682000A

EQUES^®CrossBoard
adapter 32 A
1 fixed mounting rail, with leads AWG 10 (6 mm²)
45 x 160
stock sale
More

32684000A

EQUES^®CrossBoard
adapter 32 A
1 adjustable mounting rail, with leads AWG 10 (6 mm²)
45 x 160
More

32686000A

EQUES^®CrossBoard
adapter 32 A
1 adjustable mounting rail, with leads AWG 10 (6 mm²) 160 mm long, for devices with spring terminal technology
45 x 160
More

32692000A

EQUES^®CrossBoard
adapter 45 A
1 adjustable mounting rail, with leads AWG 8 (10 mm²)
45 x 160
More
