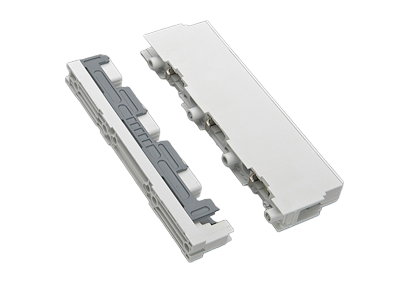

The picture may show a similar product.
Part No.: 01484 000
connection busbar support
3-pole, with integrated terminals 1.5 - 16 mm²
for busbars 12, 15, 20, 25, 30 x 5, 10
System
60Classic
Advantages of the product
Connection busbar support with integrated terminals for feeding or tapping the busbar
with internal screw holes, can also be used as centre support.
| Product group | 06 |
| Subgroup | 09 |
| pack size | 10 |
| EAN | 4021267014841 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 690 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.5 W.
(The power dissipation at full load would be 0.8 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| current capacity (IEC) max.: | 80 A |
| Current capacity of the clamping point 80A short-circuit withstand rating: surge current strength > 30kA at busbar support separation of 550mm surge current strength > 50kA at busbar support separation of 250mm further values in the short-circuit withstand rating diagram |
| Mechanical data | |
| W x H x D: | 20 x 200 x 87 |
| weight: | 25.6 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 |
| The insulation performance of the article depends on the installation conditions. | |
01573
000
end cover
for busbar supports 01484, 01495, 01500, 01508 and 01603
