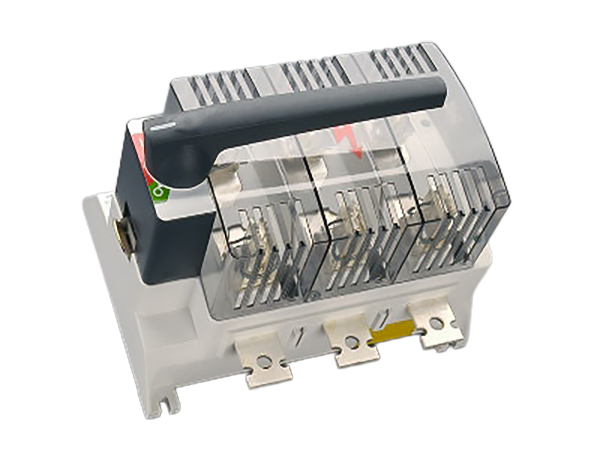

Référence 33340 000
CAPUS®Panel
sectionneur avec fusibles à 3 pôles
vis M12, poignée gris graphite
NH 3, 630 A
for mounting plate
ERGONFUSE-630
Système
Panel
Avantages produit
double-breaking main contacts,
visible separation sections,
user-independent switching,
voltage-free exchange of fuses
assembly and connection material contained in scope of delivery.
| Groupe de produits | 15 |
| Sous-groupe | 12 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267333409 |
| ECLASS 6.1 | 27371401 |
| ECLASS 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approbations
IEC (CB)
Type: LTS-F630
| for fuse links size: | NH 3 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 48 W |
| Details IEC | |
| Normes | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Courant assigné (IEC): | 630 A |
| Tension assignée (IEC) CA: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| Tension assignée de tenue aux chocs Uimp: | 12 kV |
| Catégorie d'emploi CA: | AC-23B (690V) AC-22B (690V) AC-21B (690V) |
| cond. short-circuit current with fuses (AC): | 80 kA / 690 V |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 171,5 W.
(The power dissipation at full load would be 268,0 W.)
| Mechanical lifespan (switching operations) 4000 | |
| conv. therm. current in housing 630 A, horizontal installation (adjacent poles) encapsulated 756 x 378 x 428 mm 470 A, vertical installation (poles beneath each other) encapsulated 600 x 600 x 400mm |
|
| Shock protection at front with terminal space cover IP20 for fuse links DIN 43620 size 3 up to 48W power dissipation |
| Charactéristiques mécaniques | |
| L x H x P: | 330 x 290 x 302 |
| Poids: | 1310,0 kg/100 |
| Pôles: | 3 pôles |
| Mounting: | for mounting plate |
| Points de raccordement | |
| screw connection | |
| M12 | |
| Md min.: | 36,0 Nm |
| Md max.: | 44,0 Nm |
| Not suitable for aluminium cables ! | |
| lam. Cu width: | 20 - 40 mm |
| lam. Cu thickness: | 1 - 10 mm |
| Not suitable for aluminium cables ! | |
|
When installing a cover, the switch-disconnector on the housing must not be closed, the safety instructions for the Emergency Stop switch must be observed. |
|
| permitted power dissipation of the fuse-link: | 48 W |
