for UL feeder circuits >250V
The picture may show a similar product.
Référence 01257000

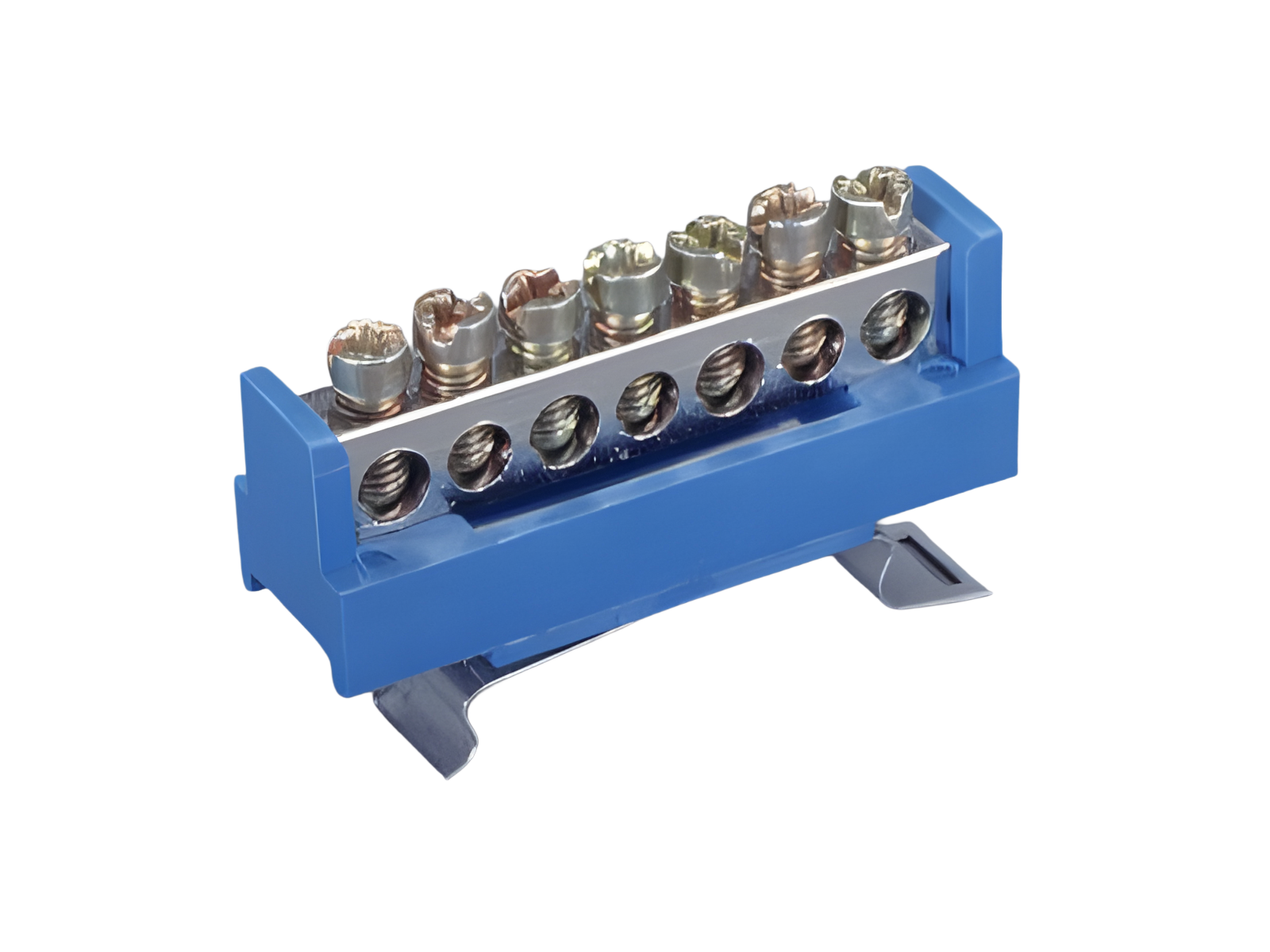

barrette neutre, bleue
encliquetable
| Groupe de produits | 06 |
| Sous-groupe | 33 |
| Dimensions de l'emballage | 50 |
| EAN | 4021267012571 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Normes
IEC 61439-1:2020
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Courant assigné (IEC): | 63 A |
| Tension assignée (IEC) CA: | 400 V |
| rated isolation voltage Ui AC: | 500 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Charactéristiques mécaniques | |
| L x H x P: | 15 x 55 x 20 |
| Poids: | 2,9 kg/100 |
