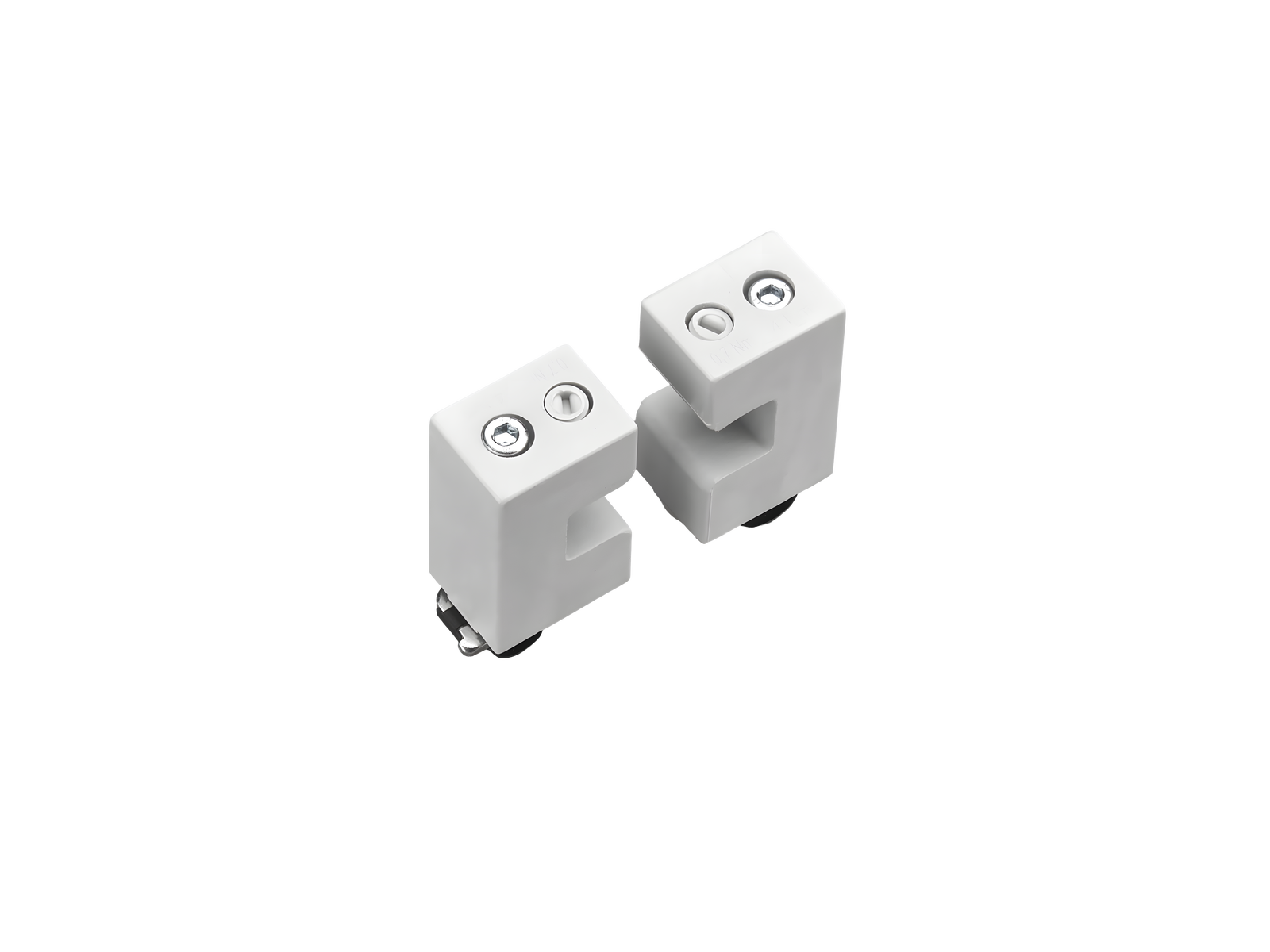

holder for flexible copper (01298)

The picture may show a similar product.

Description

Part No.: 01298 000

holder for flexible copper

for 1x lam. Cu of 6x 15.5 x 0.8 to 10x 63 x 1

Product group 06
Subgroup 30
pack size 3
EAN 4021267012984
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
weight: 11.3 kg/100

Application notes

mounting on standard C-rail

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Data sheet

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01255 000
flexible copper busbar, plain, insulated
6x 24 x 1
547 A, length 2 m
More

01035 000
flexible copper busbar, plain, insulated
6x 15.5 x 0.8
350 A, length 2 m
More

01028 000
flexible copper busbar, plain, insulated
6x 20 x 1
477 A, length 2 m
More

01029 000
flexible copper busbar, plain, insulated
10x 20 x 1
640 A, length 2 m
More

01324 000
flexible copper busbar, plain, insulated
5x 63 x 1
1061 A, length 2 m
More

01323 000
flexible copper busbar, plain, insulated
8x 24 x 1
641 A, length 2 m
More

01123 000
flexible copper busbar, tinned, insulated
10x 63 x 1
1481 A, length 2 m
More

01091 000
flexible copper busbar, tinned, insulated
10x 15.5 x 0.8
470 A, length 2 m
More

01090 000
flexible copper busbar, tinned, insulated
6x 15.5 x 0.8
350 A, length 2 m
More

01076 000
flexible copper busbar, tinned, insulated
10x 24 x 1
727 A, length 2 m
More

01064 000
flexible copper busbar, tinned, insulated
10x 20 x 1
640 A, length 2 m
More

01063 000
flexible copper busbar, tinned, insulated
6x 20 x 1
477 A, length 2 m
More

01343 000
flexible copper busbar, plain, insulated
8x 50 x 1
1114 A, length 2 m
More

01273 000
flexible copper busbar, plain, insulated
10x 100 x 1
2110 A, length 2 m
More

01112 000
flexible copper busbar, tinned, insulated
5x 50 x 1
880 A, length 2 m
More

01113 000
flexible copper busbar, tinned, insulated
10x 50 x 1
1244 A, length 2 m
More

01256 000
flexible copper busbar, plain, insulated
6x 40 x 1
809 A, length 2 m
More

01060 000
flexible copper busbar, plain, insulated
5x 50 x 1
880 A, length 2 m
More

01184 000
flexible copper busbar, plain, insulated
10x 24 x 1
727 A, length 2 m
More

01075 000
flexible copper busbar, tinned, insulated
5x 24 x 1
494 A, length 2 m
More

01099 000
flexible copper busbar, tinned, insulated
10x 40 x 1
1053 A, length 2 m
More

01097 000
flexible copper busbar, tinned, insulated
5x 40 x 1
736 A, length 2 m
More

01061 000
flexible copper busbar, plain, insulated
10x 80 x 1
1777 A, length 2 m
More

01095 000
flexible copper busbar, tinned, insulated
5x 32 x 1
617 A, length 2 m
More

01096 000
flexible copper busbar, tinned, insulated
10x 32 x 1
894 A, length 2 m
More

01583 000
flexible copper busbar, plain, insulated
10x 15.5 x 0.8
470 A, length 2 m
More

01510 000
flexible copper busbar, plain, insulated
10x 63 x 1
1481 A, length 2 m
More

01611 000
flexible copper busbar, plain, insulated
5x 24 x 1
470 A, length 2 m
More

01615 000
flexible copper busbar, plain, insulated
10x 40 x 1
1053 A, length 2 m
More

01614 000
flexible copper busbar, plain, insulated
5x 40 x 1
736 A, length 2 m
More

01509 000
flexible copper busbar, plain, insulated
10x 50 x 1
1244 A, length 2 m
More

01282 000
flexible copper busbar, plain, insulated
6x 32 x 1
715 A, length 2 m
More

01612 000
flexible copper busbar, plain, insulated
5x 32 x 1
617 A, length 2 m
More

01613 000
flexible copper busbar, plain, insulated
10x 32 x 1
894 A, length 2 m
More
