holder for flexible copper (01298)

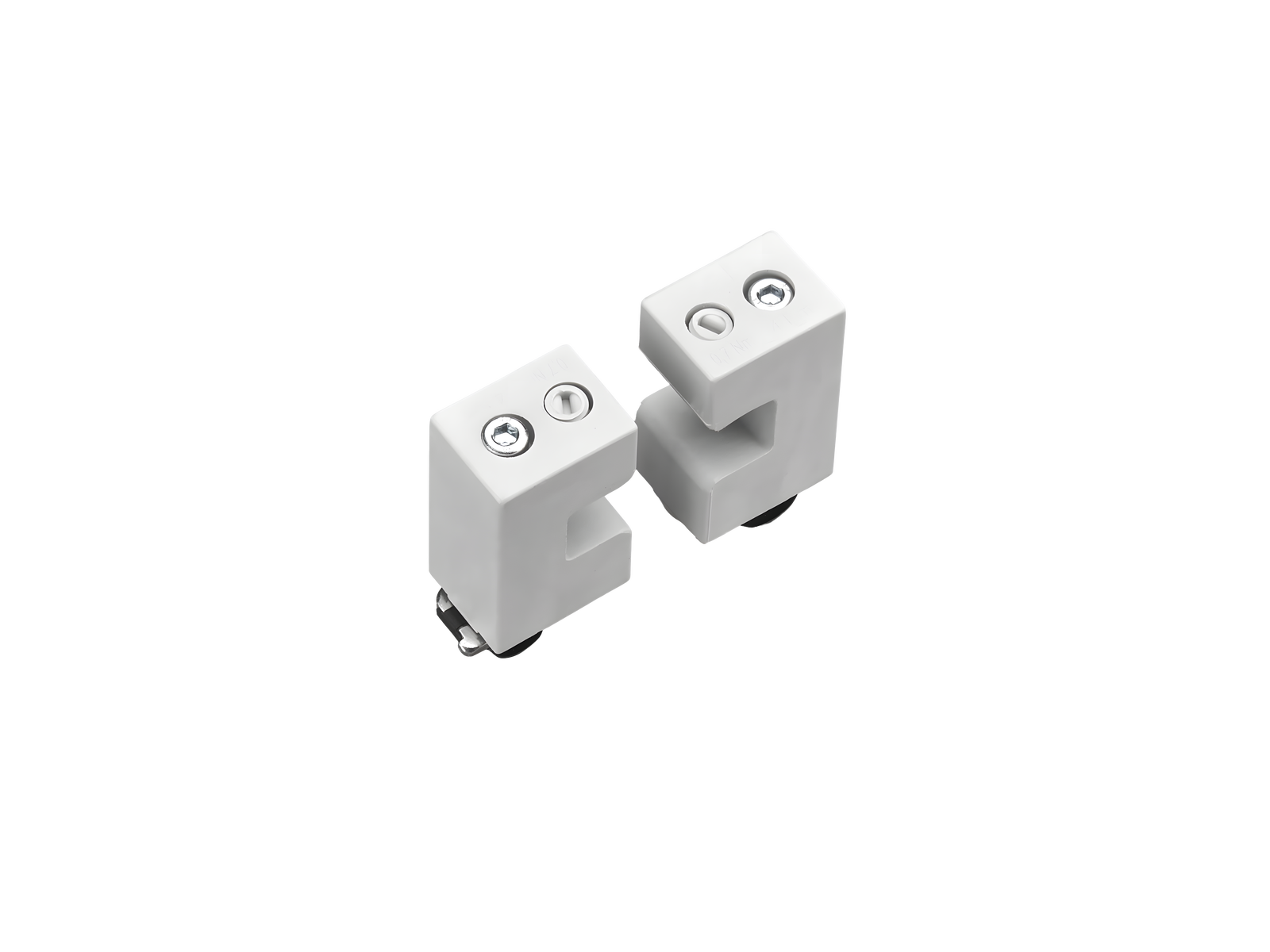

The picture may show a similar product.

Description

Part No.: 01298000

holder for flexible copper

for 1x lam. Cu of 6x 15.5 x 0.8 to 10x 63 x 1

Product group 06
Subgroup 30
pack size 3
EAN 4021267012984
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
weight: 11.3 kg/100

Application notes

Reference

mounting on standard C-rail

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Data sheet

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01255000
flexible copper busbar, plain, insulated
6x 24 x 1
547 A, length 2 m
More

01035000
flexible copper busbar, plain, insulated
6x 15.5 x 0.8
350 A, length 2 m
More

01064000
flexible copper busbar, tinned, insulated
10x 20 x 1
640 A, length 2 m
More

01076000
flexible copper busbar, tinned, insulated
10x 24 x 1
727 A, length 2 m
More

01090000
flexible copper busbar, tinned, insulated
6x 15.5 x 0.8
350 A, length 2 m
More

01091000
flexible copper busbar, tinned, insulated
10x 15.5 x 0.8
470 A, length 2 m
More

01323000
flexible copper busbar, plain, insulated
8x 24 x 1
641 A, length 2 m
More

01029000
flexible copper busbar, plain, insulated
10x 20 x 1
640 A, length 2 m
More

01324000
flexible copper busbar, plain, insulated
5x 63 x 1
1061 A, length 2 m
More

01028000
flexible copper busbar, plain, insulated
6x 20 x 1
477 A, length 2 m
More

01063000
flexible copper busbar, tinned, insulated
6x 20 x 1
477 A, length 2 m
More

01112000
flexible copper busbar, tinned, insulated
5x 50 x 1
880 A, length 2 m
More

01060000
flexible copper busbar, plain, insulated
5x 50 x 1
880 A, length 2 m
More

01184000
flexible copper busbar, plain, insulated
10x 24 x 1
727 A, length 2 m
More

01343000
flexible copper busbar, plain, insulated
8x 50 x 1
1114 A, length 2 m
More

01273000
flexible copper busbar, plain, insulated
10x 100 x 1
2110 A, length 2 m
More

01256000
flexible copper busbar, plain, insulated
6x 40 x 1
809 A, length 2 m
More

01061000
flexible copper busbar, plain, insulated
10x 80 x 1
1777 A, length 2 m
More

01097000
flexible copper busbar, tinned, insulated
5x 40 x 1
736 A, length 2 m
More

01583000
flexible copper busbar, plain, insulated
10x 15.5 x 0.8
470 A, length 2 m
More

01510000
flexible copper busbar, plain, insulated
10x 63 x 1
1481 A, length 2 m
More

01611000
flexible copper busbar, plain, insulated
5x 24 x 1
470 A, length 2 m
More

01614000
flexible copper busbar, plain, insulated
5x 40 x 1
736 A, length 2 m
More

01509000
flexible copper busbar, plain, insulated
10x 50 x 1
1244 A, length 2 m
More

01282000
flexible copper busbar, plain, insulated
6x 32 x 1
715 A, length 2 m
More

01612000
flexible copper busbar, plain, insulated
5x 32 x 1
617 A, length 2 m
More

01613000
flexible copper busbar, plain, insulated
10x 32 x 1
894 A, length 2 m
More
