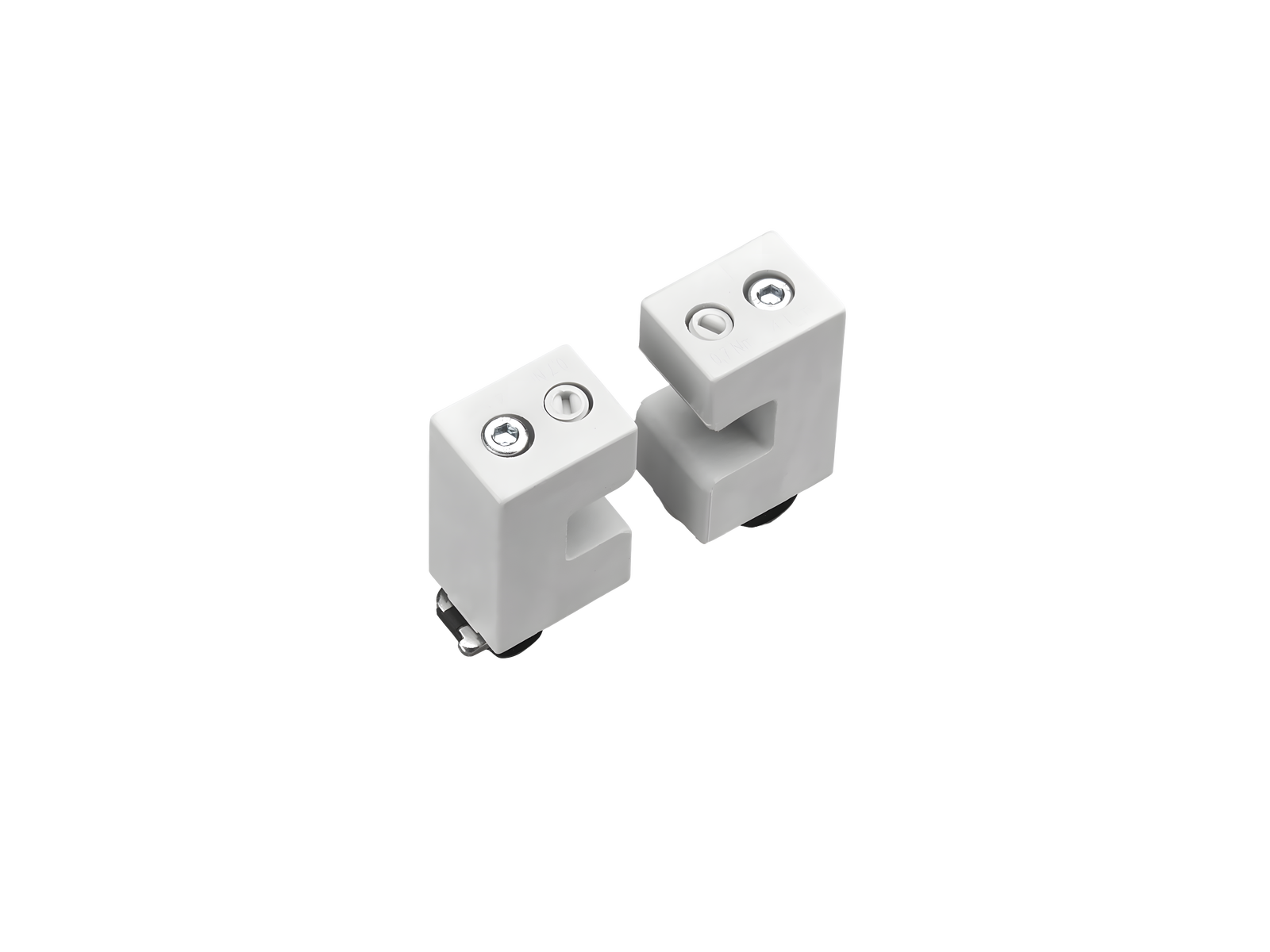

holder for flexible copper (01298)

The picture may show a similar product.

Description

Part No.: 01298 000

holder for flexible copper

for 1x lam. Cu of 6x 15.5 x 0.8 to 10x 63 x 1

Product group 06
Subgroup 30
pack size 3
EAN 4021267012984
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Mechanical data
weight: 11.3 kg/100

Application notes

mounting on standard C-rail

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| Data sheet

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

01062 100

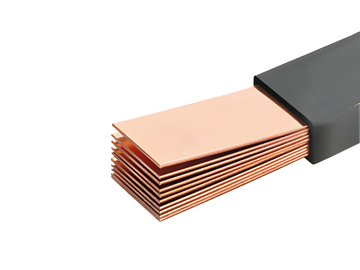

flexible copper busbar, tinned, insulated
3x 20 x 1
345 A, length 3 m
More

01146 100
flexible copper busbar, tinned, insulated
6x 13 x 0.5
250 A, length 3 m
More

01446 100
flexible copper busbar, tinned, insulated
2x 20 x 1
280 A, length 3 m
More

01447 100
flexible copper busbar, tinned, insulated
4x 20 x 1
410 A, length 3 m
More

01448 100
flexible copper busbar, tinned, insulated
5x 20 x 1
465 A, length 3 m
More

01449 100
flexible copper busbar, tinned, insulated
8x 20 x 1
585 A, length 3 m
More

01450 100
flexible copper busbar, tinned, insulated
2x 24 x 1
325 A, length 3 m
More

01451 100
flexible copper busbar, tinned, insulated
3x 24 x 1
400 A, length 3 m
More

01452 100
flexible copper busbar, tinned, insulated
4x 24 x 1
470 A, length 3 m
More

01453 100
flexible copper busbar, tinned, insulated
6x 24 x 1
590 A, length 3 m
More

01454 100
flexible copper busbar, tinned, insulated
2x 32 x 1
410 A, length 3 m
More

01455 100
flexible copper busbar, tinned, insulated
3x 32 x 1
510 A, length 3 m
More

01456 100
flexible copper busbar, tinned, insulated
4x 32 x 1
595 A, length 3 m
More

01457 100
flexible copper busbar, tinned, insulated
6x 32 x 1
740 A, length 3 m
More

01458 100
flexible copper busbar, tinned, insulated
8x 32 x 1
870 A, length 3 m
More

01504 100
flexible copper busbar, tinned, insulated
9x 9 x 0.8
330 A, length 3 m
More

01505 100
flexible copper busbar, tinned, insulated
2x 13 x 0.5
140 A, length 3 m
More

01506 100
flexible copper busbar, tinned, insulated
3x 13 x 0.5
170 A, length 3 m
More

01519 100
flexible copper busbar, tinned, insulated
8x 24 x 1
700 A, length 3 m
More

01521 100
flexible copper busbar, tinned, insulated
4x 13 x 0.5
200 A, length 3 m
More

01522 100
flexible copper busbar, tinned, insulated
10x 13 x 0.5
330 A, length 3 m
More

01523 100
flexible copper busbar, tinned, insulated
2x 15.5 x 0.8
200 A, length 3 m
More

01524 100
flexible copper busbar, tinned, insulated
3x 15.5 x 0.8
250 A, length 3 m
More

01525 100
flexible copper busbar, tinned, insulated
8x 15.5 x 0.8
430 A, length 3 m
More

01097 100
flexible copper busbar, tinned, insulated
5x 40 x 1
805 A, length 3 m
More

01099 100
flexible copper busbar, tinned, insulated
10x 40 x 1
1160 A, length 3 m
More

01112 100
flexible copper busbar, tinned, insulated
5x 50 x 1
965 A, length 3 m
More

01113 100
flexible copper busbar, tinned, insulated
10x 50 x 1
1375 A, length 3 m
More

01123 100
flexible copper busbar, tinned, insulated
10x 63 x 1
1630 A, length 3 m
More

01459 100
flexible copper busbar, tinned, insulated
3x 40 x 1
615 A, length 3 m
More

01460 100
flexible copper busbar, tinned, insulated
4x 40 x 1
715 A, length 3 m
More

01461 100
flexible copper busbar, tinned, insulated
6x 40 x 1
885 A, length 3 m
More

01462 100
flexible copper busbar, tinned, insulated
8x 40 x 1
1040 A, length 3 m
More

01463 100
flexible copper busbar, tinned, insulated
3x 50 x 1
745 A, length 3 m
More

01464 100
flexible copper busbar, tinned, insulated
4x 50 x 1
860 A, length 3 m
More

01465 100
flexible copper busbar, tinned, insulated
6x 50 x 1
1060 A, length 3 m
More

01466 100
flexible copper busbar, tinned, insulated
8x 50 x 1
1225 A, length 3 m
More

01467 100
flexible copper busbar, tinned, insulated
4x 63 x 1
1045 A, length 3 m
More

01468 100
flexible copper busbar, tinned, insulated
5x 63 x 1
1165 A, length 3 m
More

01469 100
flexible copper busbar, tinned, insulated
6x 63 x 1
1275 A, length 3 m
More

01470 100
flexible copper busbar, tinned, insulated
4x 80 x 1
1280 A, length 3 m
More

01471 100
flexible copper busbar, tinned, insulated
5x 80 x 1
1425 A, length 3 m
More

01472 100
flexible copper busbar, tinned, insulated
6x 80 x 1
1550 A, length 3 m
More

01473 100
flexible copper busbar, tinned, insulated
10x 80 x 1
1960 A, length 3 m
More

01475 100
flexible copper busbar, tinned, insulated
5x 100 x 1
1720 A, length 3 m
More

01476 100
flexible copper busbar, tinned, insulated
6x 100 x 1
1870 A, length 3 m
More

01477 100
flexible copper busbar, tinned, insulated
8x 100 x 1
2110 A, length 3 m
More

01478 100
flexible copper busbar, tinned, insulated
10x 100 x 1
2330 A, length 3 m
More

01520 100
flexible copper busbar, tinned, insulated
8x 80 x 1
1775 A, length 3 m
More

01575 100
flexible copper busbar, tinned, insulated
3x 63 x 1
905 A, length 3 m
More

01576 100
flexible copper busbar, tinned, insulated
8x 63 x 1
1465 A, length 3 m
More

01584 100
flexible copper busbar, tinned, insulated
3x 80 x 1
1115 A, length 3 m
More

01503 100
flexible copper busbar, tinned, insulated
2x 9 x 0.8
135 A, length 3 m
More

01089 100
flexible copper busbar, tinned, insulated
4x 15.5 x 0.8
295 A, length 3 m
More

01083 100
flexible copper busbar, tinned, insulated
3x 9 x 0.8
165 A, length 3 m
More

01084 100
flexible copper busbar, tinned, insulated
6x 9 x 0.8
255 A, length 3 m
More

01526 100
flexible copper busbar, tinned, insulated
2x 40 x 1
495 A, length 3 m
More

01076 100
flexible copper busbar, tinned, insulated
10x 24 x 1
800 A, length 3 m
More

01063 100
flexible copper busbar, tinned, insulated
6x 20 x 1
515 A, length 3 m
More

01064 100
flexible copper busbar, tinned, insulated
10x 20 x 1
705 A, length 3 m
More

01090 100
flexible copper busbar, tinned, insulated
6x 15.5 x 0.8
375 A, length 3 m
More

01091 100
flexible copper busbar, tinned, insulated
10x 15.5 x 0.8
510 A, length 3 m
More

01075 100
flexible copper busbar, tinned, insulated
5x 24 x 1
535 A, length 3 m
More

01095 100
flexible copper busbar, tinned, insulated
5x 32 x 1
670 A, length 3 m
More

01096 100
flexible copper busbar, tinned, insulated
10x 32 x 1
985 A, length 3 m
More
