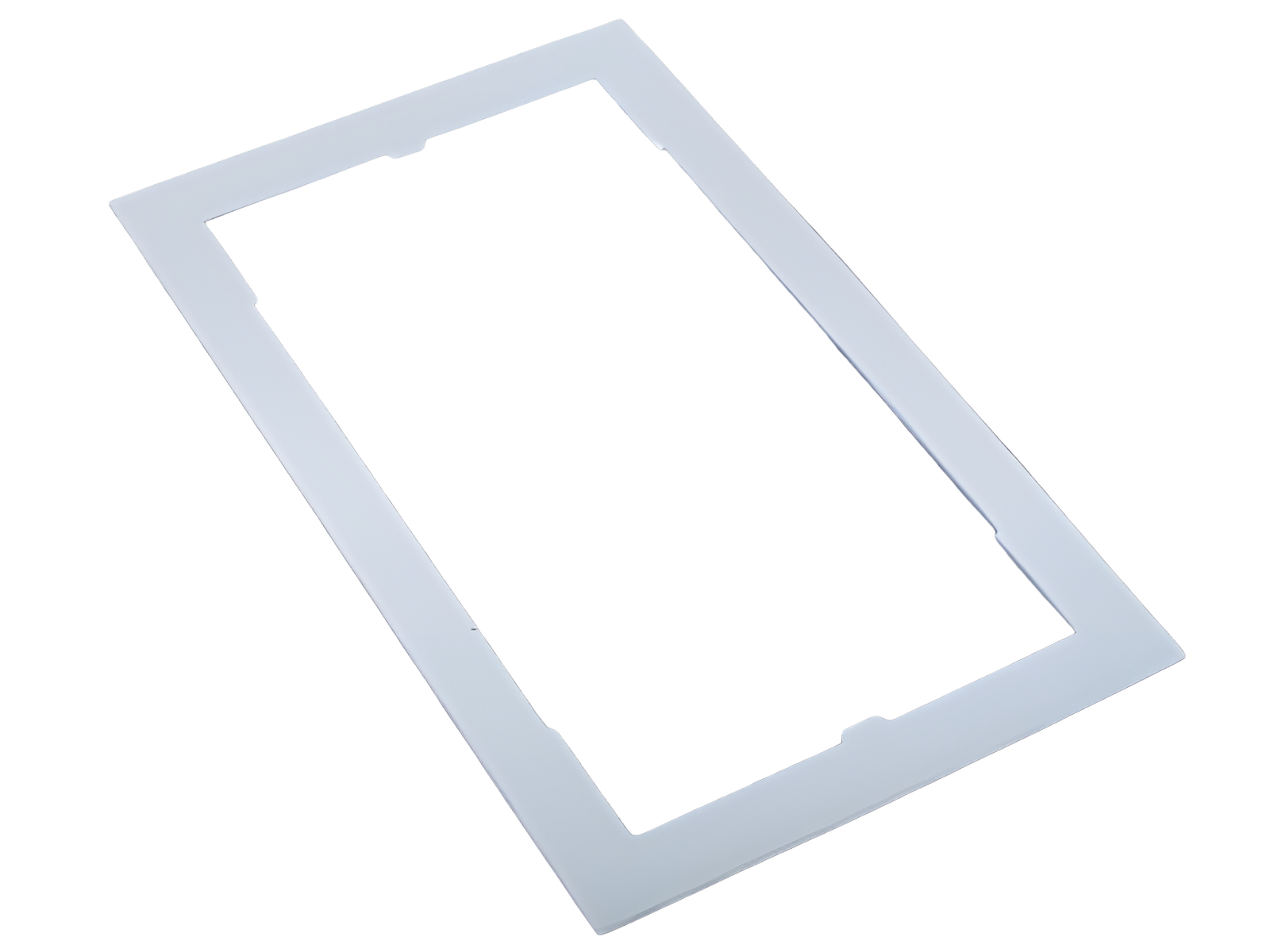

trim frame, single (78893)

The picture may show a similar product.

Description

Part No.: 78893000

trim frame, single

130 x 210, not for 33221, 33222

size 00

Product group 09
Subgroup 51
pack size 10
EAN 4021267788933
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 130 x 210 x 2
weight: 1.9 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD symbol 2D DXF

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33420000AC
NH fuse switch-disconnector size 00, 160 A
screw M8
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33394000AC
NH fuse switch-disconnector size 00, 160 A
screw M8
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
Difference: production in China, no CrossLink
More

33206000AC
NH fuse switch-disconnector size 00, 160 A
clamp 70 mm²
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
Difference: production in China, no CrossLink
More

03299000
QUADRON®60Classic
NH fuse-base 160 A
screw M8
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

03199000
QUADRON®60Classic
NH fuse-base 160 A
box terminal
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33324000AC
NH fuse switch-disconnector size 00, 160 A
clamp 70 mm²
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
Difference: production in China, no CrossLink
More

33079000
QUADRON®60Classic
NH fuse-switch-disconnector size 00, 160 A
screw M8
suitable for 5-pole system
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33207000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
with electromechanical fuse monitoring
More

33199000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
More

33208000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
screw M8
with electromechanical fuse monitoring
More

33329000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
screw M8
with electronic fuse monitoring
More

33328000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
clamp 70 mm²
with electronic fuse monitoring
More

33200000
QUADRON®Panel
NH fuse switch-disconnector size 00, 160 A, panel mounting
screw M8
More

33198000
QUADRON®60Classic
NH fuse switch-disconnector size 00, 160 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33075000
QUADRON®60Classic
NH fuse-switch-disconnector size 00, 160 A
box terminal
suitable for 5-pole system
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33324000
QUADRON®60Classic
NH fuse switch-disconnector size 00, 160 A
box terminal
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
